LED-FLASHLIGHTS

UV-LED Mini Flashlights

Reliable and handheld light sources with UV-LEDs
available wavelengths 350 nm .. 405 nm, housing: brass

Part No.	Wavelength	Output Power	Dimension	Battery	Note	Data sheet
RLT-284U	380 nm	1.5-2.0 mW		3x LR44	dark case head	request
RLT-287U	380 nm	1.5-2.0 mW			ball point pen design	request
RLT-CHECKER-385	385 nm	2.0 - 4.0 mW		4x AG3	30°	request
AL-513UV-A	395 nm	5.6 mW	11.6 x 3.1 mm	3x LR1130		request

rapid zoom focusing, black anodized aluminium body, high power 3W single chip design

Part No.	Wavelength	Dimension	Weight	Battery	Note	Data sheet
RLT-X380-ZOOM	380 nm	35 x 113 mm	135 g	3x AAA	glass lens	request
RLT-X400-ZOOM	400 nm	35 x 113 mm	135 g	3x AAA	glass lens	request
RLT-X415-ZOOM	415 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X470-ZOOM	470 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X520-ZOOM	520 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X620-ZOOM	620 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X660-ZOOM	660 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X850-ZOOM	850 nm	35 x 113 mm	135 g	3x AAA		request
RLT-X940-ZOOM	940 nm	35 x 113 mm	135 g	3x AAA		request

small size, rapid zoom focusing, changeable from long, distance spot to broad room illumination
wrist strap and belt bag included

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet
RLT-P2-ZOOM	white	90 lm	29 x 109 mm	78 g	1x AA		request

rapid zoom focusing, changeable from long, distance spot to broad room illumination
wrist strap and belt bag included

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet

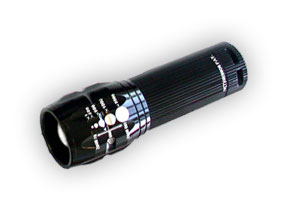

RLT-P4-ZOOM	white	80 lm	35 x 113 mm	135 g	3x AAA		request

single chip
rapid zoom focusing, exceptional brightness, anodized aluminium body
wrist strap and belt bag included

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet

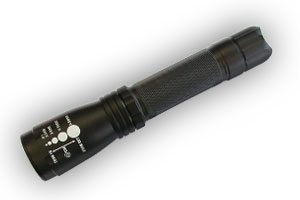

RLT-P6-ZOOM-XPG	white	500 lm	42 x 199 mm	445 g	3x C-type
RLT-P6-ZOOM-XML	white	750 lm	42 x 199 mm	445 g	3x C-type		request

LUMILEDS 1W LED, military type II anodizing

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet

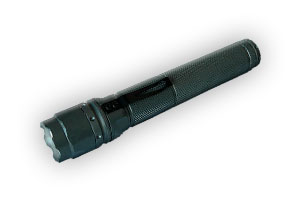

TK01-1CR123-2AA-1W	white	35 lm			CR123 or 2x AA		request

LUMILEDS 3W LED military type II anodizing

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet

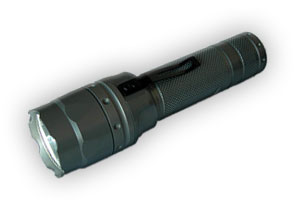

TK01-2CR123-3W	white	65 lm			2x CR123		request

superbright white LED headlight with CREE 3W LED
rapid zoom focusing, changeable from long distance spot to broad room illumination

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet
RLT-P4-HEAD-ZOOM	white	160 lm	43 x 90 x 90 mm	77 g	3x AAA		request

superbright white LED headlight with LUMILEDS 1W LED
aluminium and high quality plastic compound design, recommended for professional use

Part No.	Wavelength	Output Power	Dimension	Weight	Battery	Note	Data sheet

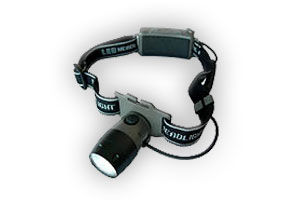

TH06-1W	white	max. 35 lm			2x AA	1 W LED headlight	request

MOQ: 1 piece
