DOT LASER MODULES - 450 nm

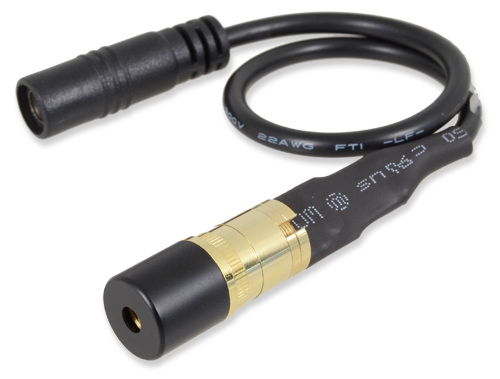

CW450 Series

Automatic Power Control, Fix focus
Wide operating temperature (-10 ..+60°C)
Wide supply voltage range (2 ..5 VDC)
cooling advisable, heat sink available

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW450-01	450 nm	<1 mW	2-5 VDC	Ø 12 x 22(49) mm	Automatic Power Control, <140 mA
CW450-05	450 nm	<5 mW	2-5 VDC	Ø 12 x 22(49) mm	Automatic Power Control, <140 mA

CW450 USB-C series

Automatic Power Control (APC)
5VDC supply voltage
USB-C connector
Fix collimated acryl lens

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW450-01C	450 nm	<1 mW	5 VDC	Ø12 x 21(44) mm	NEW
CW450-05C	450 nm	<5 mW	5 VDC	Ø12 x 21(44) mm	NEW

RLDD Series

Blue laser diode module
Glass lens, focus adjustable
CW, ACC (automatic current control)

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDD450-40-5	450 nm	40 mW	5 VDC	Ø14 x 45 mm	0.5 mrad, <170 mA

MOQ: 1 piece
