DOT LASER MODULES - 520 nm

Small Size Laser Diode Modules

APCD-520-01 series

Low cost, small size diode laser module featuring metal housing with fixfocus acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-520-01-C2	520 nm	< 1 mW	6 VDC	Ø4.0 x 8.5 mm	NEW
APCD-520-01-C3	520 nm	< 4 mW	6.0 VDC	Ø4.0 x 8.5 mm	NEW

APCD-520-02 series

Low cost, small size diode laser module featuring metal housing with focusable acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-520-02-C2	520 nm	< 1 mW	6 VDC	Ø6.0 x 11.0 mm	NEW
APCD-520-02-C3	520 nm	< 4 mW	6 VDC	Ø6.0 x 11.0 mm	NEW

APCD-520-07 series

Low cost, smallest size diode laser module featuring metal housing with fixfocus acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-520-07-C2	520 nm	< 1 mW	6 VDC	Ø3.3 x 8.0 mm	NEW

CW520 Series

Direct emitting green diode laser module
CW operation, automatic power control (APC)
Focus fixed
Operating temperature: -10 .. +50°C
cooling advisable, heat sink available

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW520-01	515 nm	<1 mW, cw	3-5 VDC	Ø 12 x 18(36) mm	Automatic Power Control, <250 mA
CW520-05	515 nm	<5 mW, cw	3-5 VDC	Ø 12 x 18(36) mm	Automatic Power Control, <350 mA

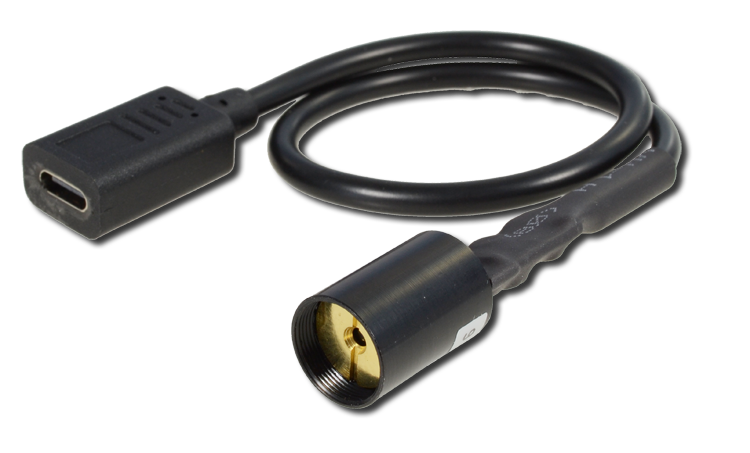

CW520 USB-C series

Automatic Power Control (APC)
5VDC supply voltage
USB-C connector
Fix collimated acryl lens

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW520-01C	515 nm	<1 mW	5 VDC	Ø12 x 18(36) mm	NEW
CW520-05C	515 nm	<1 mW	5 VDC	Ø12 x 18(36) mm	NEW

RLCW520 Series

Direct emitting green diode laser module
CW operation, automatic power control (APC)
Glass lens, focus fixed
Operating temperature: -10 .. +60°C
cooling advisable

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLCW520-5-5	520 nm	5 mW, cw	5 VDC	Ø8 x 35 mm	120 mA
RLCW520-12-5	520 nm	12 mW, cw	5 VDC	Ø8 x 35 mm	250 mA, cooling required

RLCW520M Series, with modulation

Direct emitting green diode laser module
CW operation or TTL modulation up to 10 kHz
Automatic power control (APC)
Glass lens, focus fixed
Operating temperature: -10 .. +60°C
cooling advisable

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLCW520M-1-3	520 nm	1 mW, cw	3 VDC	Ø8 x 35 mm	0.8 mrad, 30 mA, TTL <1 kHz	request
RLCW520M-5-5	520 nm	5 mW, cw	5 VDC	Ø8 x 35 mm	0.8 mrad, 120 mA, TTL <10 kHz

RLCW520F Series, focus adjustable

Direct emitting green diode laser module
CW operation, automatic power control (APC)
Glass lens, focus adjustable
Operating temperature: -10 .. +60°C
cooling advisable

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLCW520F-9-5	520 nm	9 mW, cw	5 VDC	Ø16 x 65 mm	Focus adjustable, 100 mA	request

MOQ: 1 piece
