DOT LASER MODULES - 532 nm

CW532 series

Low cost, high quality, small size, solid state, cw
APC and ACC, 1.2 mrad, fix foscus, acryl lens
supply voltage 3 VDC
cooling necessary!

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532-001	532 nm	<1 mW	3 VDC	Ø12 x 31 (49) mm	APC
CW532-005	532 nm	<5 mW	3 VDC	Ø12 x 31 (49) mm	APC
CW532-010	532 nm	10 mW	3 VDC	Ø12 x 31 (49) mm	APC
CW532-020	532 nm	20 mW	3 VDC	Ø12 x 31 (49) mm	APC
CW532-030	532 nm	30 mW	3 VDC	Ø12 x 35 (53) mm	APC
CW532-050	532 nm	50 mW	3 VDC	Ø12 x 35 (53) mm	APC
CW532-100	532 nm	100 mW	3 VDC	Ø12 x 31 (49) mm	ACC

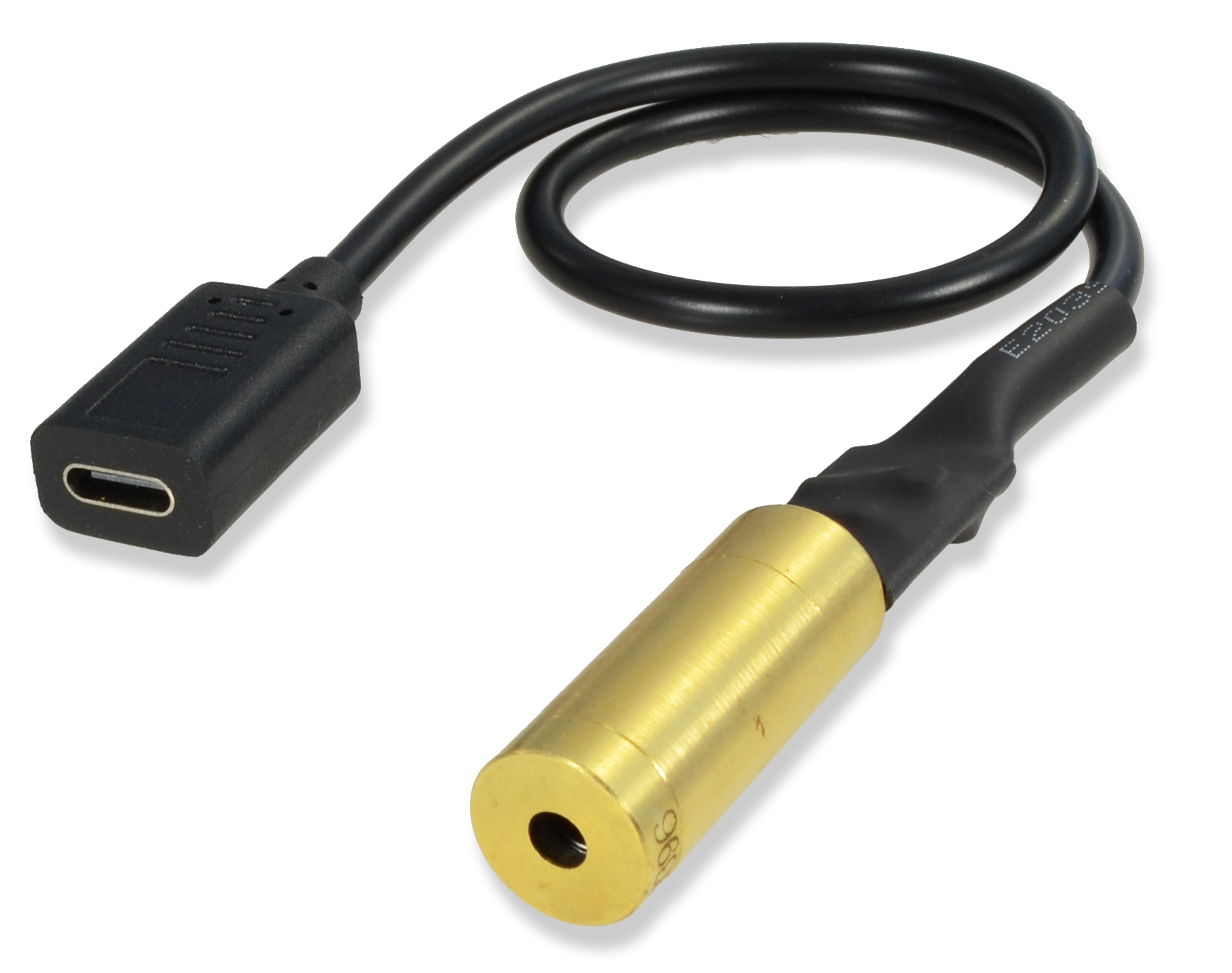

CW532 USB-C series

Diode Pumped Solid State (DPSS) laser module
Automatic Power Control (APC)
5VDC supply voltage
USB-C connector
Fix collimated lens

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532-01C	532 nm	<1 mW	5 VDC	Ø12 x 31(49) mm	NEW
CW532-05C	532 nm	<5 mW	5 VDC	Ø12 x 31(49) mm	NEW

CW532H HIGH POWER series

Small size, high quality, solid state, cw, supply voltage 3 VDC, APC
Electronics fully encapsulated

cooling necessary!

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532H-050	532 nm	50 mW	3 VDC	Ø26 x 100 mm	APC, electronics integrated
CW532H-100	532 nm	100 mW	3 VDC	Ø26 x 100 mm	APC, electronics integrated
CW532H-300	532 nm	300 mW	3 VDC	Ø26 x 100 mm	APC, electronics integrated

CW532HT series

wide temperature range (10 - 50°C)
small size, green DPSS laser modules
APC, 1.2 mrad, fix foscus, acryl lens
supply voltage 3 VDC
cooling necessary!

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532HT-1	532 nm	<1 mW	3 VDC	Ø12 x 31.3 (51.3) mm	APC, 10-50°C
CW532HT-5	532 nm	<5 mW	3 VDC	Ø12 x 31.3 (51.3) mm	APC, 10-50°C
LAS532-WT50-3	532 nm	3.25 mW	3 VDC	Ø12 x 35 mm		request

CW532-831 series

smallest size, green DPSS laser modules
APC, 1.2 mrad, fix foscus, acryl lens
supply voltage 3 VDC
cooling necessary!

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532-1-831	532 nm	<1 mW	3 VDC	Ø8 x 31 (49) mm	APC, 150 mA
CW532-5-831	532 nm	<5 mW	3 VDC	Ø8 x 31 (49) mm	APC, 200 mA

CW532 FOCUSSABLE series

Focusable solid state cw green laser modules, cooling necessary! APC and ACC, supply voltage 3 VDC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW532-001F	532 nm	<1 mW	3 VDC	Ø13 x 37 (55) mm	APC
CW532-005F	532 nm	<5 mW	3 VDC	Ø13 x 37 (55) mm	APC
CW532-010F	532 nm	10 mW	3 VDC	Ø13 x 37 (55) mm	APC
CW532-020F	532 nm	20 mW	3 VDC	Ø13 x 37 (55) mm	APC
CW532-050F	532 nm	50 mW	3 VDC	Ø13 x 37 (55) mm	APC
CW532-100F	532 nm	100 mW	3 VDC	Ø13 x 37 (55) mm	ACC

RLDD series

Small size diode pumped solid state green laser modules, ready to use, APC, 0.5 mrad, supply voltage 3 VDC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDD532-1-3	532 nm	1 mW, class II	3 VDC	Ø16 x 85 mm
RLDD532-3-3	532 nm	3 mW	3 VDC	Ø16 x 60 mm
RLDD532-5-3	532 nm	5 mW	3 VDC	Ø16 x 60 mm		request
RLDD532-10-3	532 nm	10 mW	3 VDC	Ø20 x 80 mm
RLDD532-50-3	532 nm	50 mW	3 VDC	Ø42 x 80 mm

CW532-04 series

Diode pumped solid state green laser system, ready to use, APC, 1.5 mrad, external driver unit, supply voltage 9 VDC
Operation Mode: CW and modulation (TTL, 10 kHz)
Dimension: driver unit - 47 x 61 x 80 mm, laser head - 34 x 50 x 50 mm

Part No.	Wavelength	Power	Supply Vol.	Laser Head	Note	Data sheet
CW532-04-1	532 nm	<1 mW	9 VDC	34 x 50 x 50 mm
CW532-04-5	532 nm	<5 mW	9 VDC	34 x 50 x 50 mm
CW532-04-10	532 nm	<10 mW	9 VDC	34 x 50 x 50 mm
CW532-04-20	532 nm	<20 mW	9 VDC	34 x 50 x 50 mm
CW532-04-30	532 nm	>30 mW	9 VDC	34 x 50 x 50 mm
CW532-04-50	532 nm	>50 mW	9 VDC	34 x 50 x 50 mm
CW532-04-100	532 nm	>100 mW	9 VDC	34 x 50 x 50 mm

GLML3C1 series

Diode pumped solid state green laser system, ready to use, external driver unit, supply voltage 9 VDC
Operation Mode: CW and modulation (TTL, 10 kHz)

-> PHASE OUT

Part No.	Wavelength	Power	Supply Vol.	Laser Head	Note	Data sheet
GLML3C1-50	532 nm	>50 mW	9 VDC	80 x 55 x 34 mm

MOQ: 1 piece
