DOT LASER MODULES - 650 nm

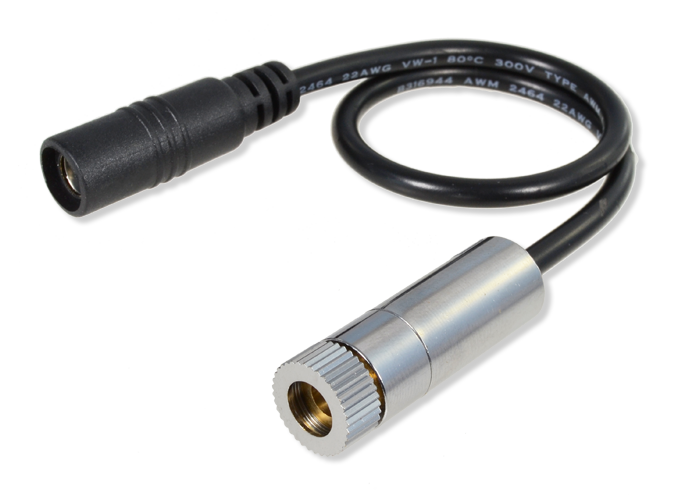

CW650 series

Automatic Power Control (APC)
3VDC supply voltage
Standard cinch connector
Focussable acryl lens

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW650-01	650 nm	<1 mW	3 VDC	Ø12 x 37 mm	NEW
CW650-05	650 nm	<5 mW	3 VDC	Ø12 x 37 mm	NEW
CW650-10	650 nm	10 mW	3 VDC	Ø12 x 37 mm	NEW

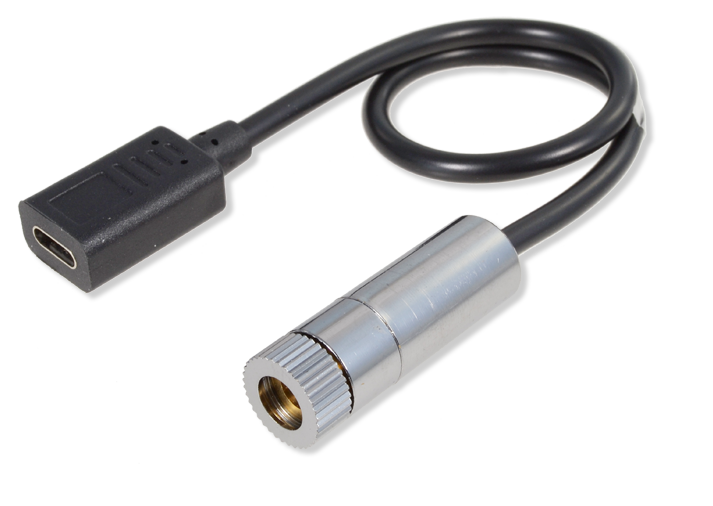

CW650 USB-C series

Automatic Power Control (APC)
5VDC supply voltage
USB-C connector
Focussable acryl lens

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW650-01C	650 nm	<1 mW	5 VDC	Ø12 x 37 mm	NEW
CW650-05C	650 nm	<5 mW	3 VDC	Ø12 x 37 mm	NEW
CW650-10C	650 nm	10 mW	3 VDC	Ø12 x 37 mm	NEW

LJ series

LJ series laser diode module, complete and ready to use, single element aspheric acrylic collimator optic, focusable, supply voltage 3-5 VDC, available wavelengths 635 nm, 650 nm, 780 nm, 808 nm and 850 nm

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LDM650/1LJ	650 nm	1 mW	3-5 VDC	Ø12 x 30.5 mm
LDM650/3LJ	650 nm	3 mW	3-5 VDC	Ø12 x 30.5 mm
LDM650/5LJ	650 nm	5 mW	3-5 VDC	Ø12 x 30.5 mm

LJM series

LJM series laser diode module, complete and ready to use, focusable, acrylic collimator optic, with modulation DC to 360 kHz, analog and digital, supply voltage 3-5 VDC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LDM650/1LJM	650 nm	1 mW	3-5 VDC	Ø12 x 30.5 mm
LDM650/5LJM	650 nm	5 mW	3-5 VDC	Ø12 x 30.5 mm

LT series

LT series laser diode module, diverse wavelengths available, complete and ready to use, 3-lens glass collimator, focusable, supply voltage 4-5 VDC, excellent beam quality

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LDM650/1LT	650 nm	1 mW	3-5 VDC	Ø13 x 52 mm
LDM650/3LT	650 nm	3 mW	3-5 VDC	Ø13 x 52 mm
LDM650/5LT	650 nm	5 mW	3-5 VDC	Ø13 x 52 mm

LTM series

LTM series laser diode module, complete and ready to use, focusable, 3-lens glass collimator, modulation DC to 1 MHz, analog and digital, excellent beam quality, supply voltage 4-5 VDC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LDM650/5LTM	650 nm	5 mW	3-5 VDC	Ø13 x 52 mm

RLD Series

High power red laser diode module series, focusable, sm, supply voltage 3 VDC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDG650-13-3-LI	650 nm	13 mW	3 VDC	Ø14 x 45 mm	wires only
RLDH650-24-3	650 nm	24 mW	3 VDC	Ø14 x 45 mm	with connector
RLDH650-24-3-LI	650 nm	24 mW	3 VDC	Ø14 x 45 mm	wires only

RLDH650M series, with modulable

Red laser diode module
CW operation or TTL modulation
Glass lens, focus adjustable
Operating temperature: -10 .. +40°CC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDH650M-4-5	650 nm	4 mW	5 VDC	Ø12 x 34 mm	APC, <50 mA, TTL <500 kHz
RLDH650M-24-5	650 nm	24 mW	5 VDC	Ø14 x 45 mm	ACC, <120 mA, TTL <200 kHz
RLDH650M-40-5	650 nm	40 mW	5 VDC	Ø16 x 50 mm	ACC, <120 mA, TTL <50 kHz

VLM series

Laser modules with typ. < 1 mW or < 5 mW laser power, fixfocus
available wavelengths 635 nm and 650 nm

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
VLM650-00	650 nm	< 3 mW	2.1 - 2.6 VDC	Ø10.52 x 17.20 mm	w/o driver board	request
VLM650-01-LPA	650 nm	< 5 mW	3.0 - 5.0 VDC	Ø10.40 x 18.50 mm		request
VLM650-02-LPA	650 nm	< 5 mW	3.0 - 5.0 VDC	Ø10.50 x 17.20 mm		request
VLM650-03-LPT	650 nm	< 1 mW	3.0 - 5.0 VDC	Ø7.00 x 22.50 mm
VLM650-04-LPT	650 nm	< 1 mW	3.0 - 5.0 VDC	Ø6.55 x 12.10 mm
VLM650-06-LPA	650 nm	< 5 mW	2.7 - 6.0 VDC	Ø12.50 x 53.00 mm
VLM650-07-LPA	650 nm	< 5 mW	6.0 - 12.0 VDC	Ø12.50 x 53.00 mm
VLM650-08-LPA	650 nm	< 5 mW		Ø10.51 x 24.60 mm		request
VLM650-09-LPA	650 nm	< 5 mW		Ø10.51 x 31.00 mm		request
VLM650-11-LPT	650 nm	< 1 mW	3.0 - 5.0 VDC	Ø10.52 x 30.00 mm
VLM650-11-LPA	650 nm	< 5 mW	3.0 - 5.0 VDC	Ø10.52 x 30.00 mm
VLM650-14-LPA	650 nm	< 5 mW		Ø12.00 x 43.00 mm		request
VLM650-15-LPA	650 nm	< 5 mW		Ø12.00 x 30.00 mm		request
VLM650-16-LPT	650 nm	< 1 mW		Ø8.50 x 24.50 mm		request
VLM650-16-LPA	650 nm	< 5 mW		Ø8.50 x 24.50 mm		request
VLM650-17-LPT	650 nm	< 1 mW		Ø12.50 x 33.00 mm		request
VLM650-17-LPA	650 nm	< 5 mW		Ø12.50 x 33.00 mm		request

Small Size Laser Diode Modules

APCD-650-01 series

Low cost, small size diode laser module featuring metal housing with fixfocus acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-650-01-C2	650 nm	< 1 mW	2.5 - 3.3 VDC	Ø4.0 x 9.1 mm	Laser Class 2
APCD-650-01-C3	650 nm	< 3.5 mW	2.5 - 3.3 VDC	Ø4.0 x 9.1 mm

APCD-650-02 series

Low cost, small size diode laser module featuring metal housing with focusable acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-650-02-C2	650 nm	< 1 mW	2.5 - 3.3 VDC	Ø6.0 x 11.0 mm	Laser Class 2
APCD-650-02-C3	650 nm	< 3.5 mW	2.5 - 3.3 VDC	Ø6.0 x 11.0 mm

APCD-650-06 series

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-650-06-C2	650 nm	< 1 mW	2.5 - 3.3 VDC	Ø6.5 x 9.0 mm	Laser Class 2
APCD-650-06-C3	650 nm	< 3.5 mW	2.5 - 3.3 VDC	Ø6.5 x 9.0 mm

APCD-650-07 series

Low cost, smallest size diode laser module featuring metal housing with fixfocus acrylic collimating lens for excellent beam quality. Integrated driving electronics with surge current protection. APC (Auto Power Control) circuit for long time stable operation, and Laser Class 2 classification.

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
APCD-650-07-C2	650 nm	< 1 mW	2.5 - 3.3 VDC	Ø3.3 x 8.0 mm	Laser Class 2
APCD-650-07-C3	650 nm	< 3 mW	2.5 - 3.3 VDC	Ø3.3 x 8.0 mm

RLCG650 series, small size

Red laser diode module
Plastic lens, focus fixed
CW, APC (automatic power control)
Operating temperature: -10 .. +40°CC

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDG650-1-3-LI	650 nm	1 mW	3 VDC	Ø7 x 14 mm	0.8 mrad, <50 mA, wires only

RLCD650 series

RLDC laser module series, very small size, glass collimator, focusable, power typ. 2 mW, sm, power supply, available wavelengths 635 nm, 650 nm, 670 nm or 850 nm

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLDC650-2.2-3	650 nm	typ. 2 mW	3 VDC	Ø8 x 25.0 mm

Low Cost Laser Diode Modules

LM-0x series

low cost laser diode module series for general purposes, visible wavelength 650 nm and power typ. < 3 mW, supply voltage 3.0-4.5 VDC, fixfocus

-> PHASE OUT

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LM-01	650 nm	< 3 mW	3.0 - 4.5 VDC	Ø8 x 29.5 mm		request
LM-02	650 nm	< 3 mW	3.0 - 4.5 VDC	Ø12 x 30.5 mm		request

LM-101-A16 series

low cost laser diode module series
output power: <1 mW, Laser Class 2, wavelength: 650 nm
custom design on request

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LM-101-A16	650 nm	< 1 mW	3-5 VDC	Ø9 x 26 mm	fixfocus, Laser Class 2
LM-101-A16F	650 nm	< 1 mW	3-5 VDC	Ø9 x 26 mm	focusable, Laser Class 2	request

LM-10x series

low cost laser diode module series
output power: < 1 mW or < 5 mW, available wavelength: 635 nm and 650 nm
custom design on request

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
LM-101-A4	650 nm	< 1 mW	2.8 - 3.4 VDC	Ø8 x 24 mm	Laser Class 2
LM-102-B004	650 nm	< 5 mW	2.8 - 3.4 VDC	Ø8 x 24 mm

DT650-2.5-3

low cost laser diode module
focusable

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
DT650-2.5-3	650 nm	3 mW	3 VDC	Ø10.5 x 28 mm

RLM-650 series

RLM series, low cost laser diode module
output power: 1-2 mW

-> PHASE OUT

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLM-650-A-1	650 nm	1-2 mW	3.0 - 4.5 VDC	Ø10 x 26.5 mm

MOQ: 1 piece
