DIODE PUMPED SOLID STATE LASER SYSTEMS - 355 nm

RLTMPL-355 series

Passively Q-switched ultraviolet laser at 355 nm

  • Operation Mode: Q-switched
  • Seperate laser head, cooled by TEC
  • Power supply included, fixed output power, 90-264 VAC
  • Pulse duration: ~7 ns
  • Controllable or uncontrollable repetition rate
  • Beam diameter at aperature: Elliptical, ~2.0 mm
  • RoHS conform
  • FDA and CE certified
  • Lifetime: 10.000 hours
  • Warranty: 1 year
Part No. Wavelength Power Stability Laser Head Power Supply Note Data sheet

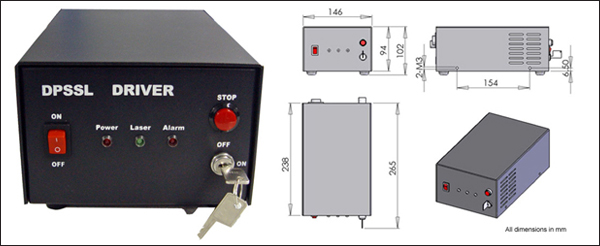

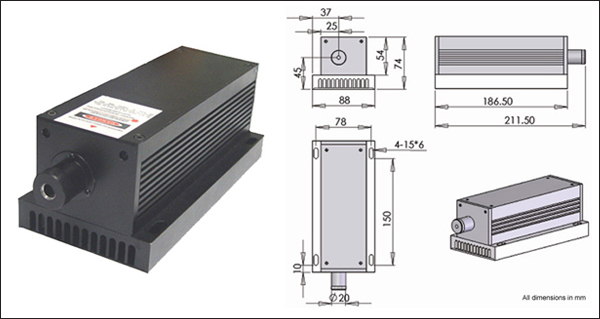

RLTMPL-355-10-10 355 nm 1 µJ / 10 mW <10 % 209 x 88 x 74 mm PSU-H-FDA request
RLTMPL-355-20-10 355 nm 2 µJ / 20 mW <10 % 209 x 88 x 74 mm PSU-H-FDA request
RLTMPL-355-50-10 355 nm 5 µJ / 50 mW <10 % 209 x 88 x 74 mm PSU-H-FDA request
RLTMPL-355-100-10 355 nm 10 µJ / 100 mW <10 % 209 x 88 x 74 mm PSU-H-FDA request
RLTMPL-355-150-10 355 nm 15 µJ / 150 mW <10 % 209 x 88 x 74 mm PSU-H-FDA request

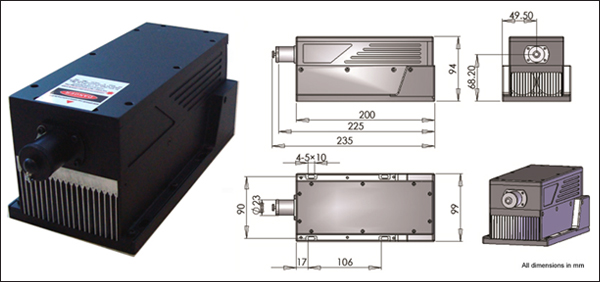

RLTMPL-355-200-10 355 nm 30 µJ / 200 mW <10 % 240 x 99 x 94 mm PSU-H-FDA request

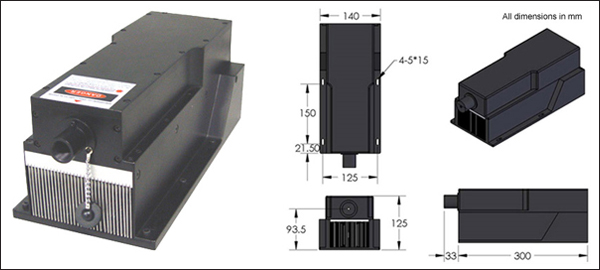

RLTMPL-355-500-10 355 nm 60 µJ / 500 mW <10 % 333 x 140 x 125 mm PSU-W-FDA request
RLTMPL-355-1W-10 355 nm 40 µJ / 1 W <10 % 333 x 140 x 125 mm PSU-W-FDA request
Additional Options (please send us a request)
Output Stability:
< 5 %
Line Generator:
BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
Fiber coupling:
MM fiber, different fiber cores, FC or SMA905 connector.
Fiber collimator:

RLTMxL FOC, contains a AR-coated aspheric lens to connect onto the end of FC or SMA905 connector.

Available as adjustable or fixed.

pdf

RLTAOM-355 series

Actively Q-switched ultraviolet laser at 355 nm

  • Operation Mode: Q-switched, Acousto-Optic Modulation
  • Seperate laser head, cooled by TEC
  • Power supply included, adjustable output power, 220/110 VAC
  • Pulse duration: 10 - 15 ns
  • Adjustable repetition rate
  • Beam diameter at aperature: ~4.0 mm
  • RoHS conform
  • FDA and CE certified
  • Lifetime: 10.000 hours
  • Warranty: 1 year
Part No. Wavelength Power Stability Laser Head Power Supply Note Data sheet
RLTAOM-355-50-10 355 nm 50 mW qcw <10 % 348 x 140 x 125 mm PSU-AOM request
RLTAOM-355-100-10 355 nm 100 mW qcw <10 % 348 x 140 x 125 mm PSU-AOM request
RLTAOM-355-300-10 355 nm 300 mW qcw <10 % 348 x 140 x 125 mm PSU-AOM request
RLTAOM-355-500-10 355 nm 500 mW qcw <10 % 348 x 140 x 125 mm PSU-AOM request
Additional Options (please send us a request)
Output Stability:
< 5 % and <3 %
Line Generator:
BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
Fiber coupling:
MM fiber, different fiber cores, FC or SMA905 connector.
Fiber collimator:

RLTMxL FOC, contains a AR-coated aspheric lens to connect onto the end of FC or SMA905 connector.

Available as adjustable or fixed.

MOQ: 1 piece
