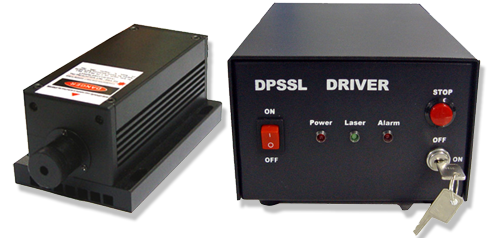

RLTMDL-447 series
- • Operation Mode: CW
- • Seperate laser head, cooled by TEC
- • Power supply included: PSU-FDA, 90 - 264 VAC
- • Beam divergence: 1.5 mrad
- • Beam diameter at aperature: 5 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
447 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
RLTMDL-447-10-5 | 447 nm | 10 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | request | ||
RLTMDL-447-20-5 | 447 nm | 20 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | request | ||
RLTMDL-447-50-5 | 447 nm | 50 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | request | ||
RLTMDL-447-100-5 | 447 nm | 100 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | request | ||
RLTMDL-447-200-5 | 447 nm | 200 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | request | ||
RLTMDL-447-500-5 | 447 nm | 500 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request | |
RLTMDL-447-800-5 | 447 nm | 800 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request | |
RLTMDL-447-1W-5 | 447 nm | 1000 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request |
- Power Supply:
PSU-LED, output power continuously adjustable with current display, 90 - 264 VAC.
PSU-OEM, driving electronics only, no power supply included, for system integration.
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 30kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.

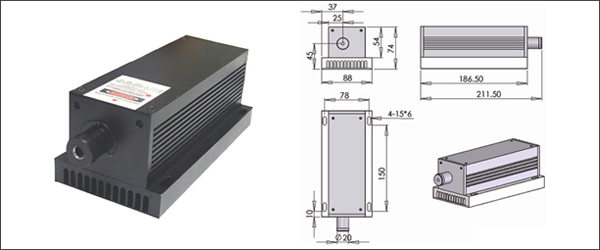

RLTMDL-H-447 High Power series
- • Operation Mode: CW
- • Seperate laser head, cooled by TEC

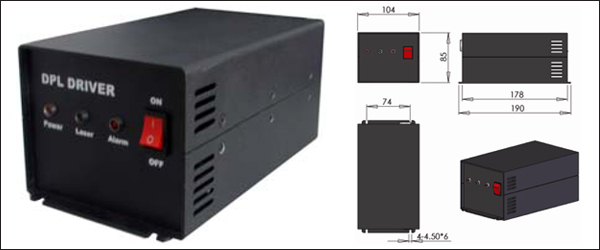

- • Power supply included: PSU-OEM, 90 - 264 VAC
- • Beam divergence: < 2.8 x 0.5 mrad
- • Beam diameter at aperature: 4 x 4 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
447 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
RLTMDL-H-447-1W-5 | 447 nm | 1 W cw | < 5 % | 211 x 88 x 74 mm | PSU-OEM | request | ||
RLTMDL-H-447-1.5W-5 | 447 nm | 1.5 W cw | < 5 % | 211 x 88 x 74 mm | PSU-OEM | request | ||
RLTMDL-H-447-2W-5 | 447 nm | 2 W cw | < 5 % | 211 x 88 x 74 mm | PSU-OEM | request |
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 30kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.
RLTMLL-447 series, Low Noise
- • Operation Mode: CW
- • Low Noise, < 1 %
- • Seperate laser head, cooled by TEC
- • Power supply included: PSU-FDA, 90 - 264 VAC
- • Beam divergence: 1.5 mrad
- • Beam diameter at aperature: 5 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
447 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
RLTMLL-447-10-5 | 447 nm | 10 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
RLTMLL-447-20-5 | 447 nm | 20 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
RLTMLL-447-50-5 | 447 nm | 50 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
RLTMLL-447-100-5 | 447 nm | 100 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
RLTMLL-447-300-5 | 447 nm | 300 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
RLTMLL-447-500-5 | 447 nm | 500 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request | |
RLTMLL-447-800-5 | 447 nm | 800 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request | |
RLTMLL-447-1W-5 | 447 nm | 1000 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | beam div. 3.0 x 0.5 | request |
- Power Supply:
PSU-LED, output power continuously adjustable with current display, 90 - 264 VAC.
PSU-OEM, driving electronics only, no power supply included, for system integration.
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 30kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.
RLTMFC-447 series, Fiber Coupled
- • "one box" system, 100-240 VAC power supply integrated
- • fiber core diameter: 100 µm, 200 µm, 400 µm (others on request)
- • Adjustable power, temperature controlled, LED display
- • Operation mode: CW, pulse (TTL or Analog) on request
- • Pulse mode: adjustable pulse width, puls period and time limit
- • Air cooled
447 nm | Wavelength | Po | Stability | Laser Unit | Connector | Note | Data sheet | |
RLTMFC-447-10-5 | 447 nm | 10 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-20-5 | 447 nm | 20 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-50-5 | 447 nm | 50 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-100-5 | 447 nm | 100 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-300-5 | 447 nm | 300 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-500-5 | 447 nm | 500 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-800-5 | 447 nm | 800 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
RLTMFC-447-1W-5 | 447 nm | 1000 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request |
MOQ: 1 piece
