Laser Diode collimators - Molded Plastic

made of PMMA, available with and without anti reflective coating

Part No.	Diameter	Height	Focal length	N.A.	Note	Data sheet
GS-7021-2C	Ø 7.0 mm	3.3 mm	8 mm		ARC
CAY046	Ø 7.4 mm	3.05 mm	4.6 mm	0.40	AR coated, 700-900 nm
CAY046NC	Ø 7.4 mm	3.05 mm	4.6 mm	0.40	uncoated	request
CAW100NC	Ø 5.20 mm	2.44 mm	10.0 mm	0.20	uncoated	request
LENS-05A	Ø 7.0 mm	2.8 mm	8 mm			request
LC3	Ø 3.0 mm	2.4 mm	4.5 mm		PMMA
ACL3033	Ø 3.0 mm	2.0 mm	3.3 mm (BFL)		PMMA
LC5	Ø 4.86 mm	2.36 mm	6.0 mm		PMMA
ACL5048	Ø 5.0 mm	2.3 mm	4.8 mm (BFL)		PMMA
LC7	Ø 7.0 mm	3.15 mm	7.8 mm		PMMA
ACL7065	Ø 7.0 mm	3.3 mm	6.5 mm (BFL)		PMMA
LC12	Ø 7.0 mm	3.15 mm	12.5 mm		PMMA	request
ACL7012	Ø 7.0 mm	2.6 mm	12.5 mm		PMMA

Laser Diode Collimators - Glass

ARC for blue, green, red, and IR laser diodes available
focal lengths 4 - 11 mm, 1 - 3 glass lens design
unmounted or with M9x0.5 mm threaded housing

Part No.	Focal length	N.A.	Coating	Mounted	Note	Data sheet
RGL-402-9C	4.0 mm	0.6	400-700 nm		1 glass lens, M9x0.5 housing
RGL-550-9BS	5.5 mm	0.25	405-450 nm		3 glass lens	request
RGL-550-9B	5.5 mm	0.45	405-450 nm		1 glass lens	request
RGL-550-9C	5.5 mm	0.45	405-700 nm		2 glass lens
RGL-650-9C	6.5 mm	0.45	400-700 nm		2 glass lens
GS-8020B	8 mm	0.3	400-450 nm		3 glass lens, o-ring sealing
RGL-830-9B	8.3 mm	0.30	405-450 nm		3 glass lens
LCB-3G	9.5 mm	0.26	400-450 nm		3 glass lens	request
RGL-110-9B	11.0 mm	0.45	405-450 nm		3 glass lens	request
RGL-550-9RS	5.5 mm	0.25	630-670 nm		3 glass lens	request
RGL-550-9R	5.5 mm	0.45	630-670 nm		2 glass lens
RLC-103AF	8 mm	0.3	630-670 nm		3 glass lens	request
GS-8020A	8 mm	0.3	630-670 nm		3 glass lens, o-ring sealing
RGL-830-9R	8.3 mm	0.30	630-670 nm		3 glass lens	request
MPG-95	9.5 mm	0.29	630-670 nm		3 glass lens	request
MPG-11	11 mm	0.26	630-670 nm		3 glass lens	request
RGL-110-9R	11 mm	0.45	630-670 nm		3 glass lens	request
RLY-134G	8.2 mm	0.29	630-780 nm		3 glass lens
RGL-820-9IR	8.2 mm	0.29	630-780 nm		3 glass lens	request
LENS-15	9 mm	0.11	630-780 nm	X	1 glass lens, no housing, 5.0 x 1.5 mm	request

Laser Diode Collimators Achromatic Doublet Lens - Glass

achromatic doublet lenses for limiting chromatic and spherical aberration
best suited for laser diode collimation

Part No.	Focal length	N.A.	Size	Note	Data sheet
DBS-05	11 mm	0.11	5.2 x 3.0 mm	ARC	request
DBS-07	15 mm	0.18	6.5 x 3.6 mm	ARC	request
DBS-14	45 mm	0.13	14.0 x 6.9 mm	ARC	request

Fiber Optic Collimator Lenses

Collimate light exiting a fiber to a selected spot size.
The spherical lenses are broadband coated, but can be also offered with costumized antireflection coating.
The units are available with FC/PC or SMA connector.
Focal lenghts 4 - 40 mm, spot size 1.1 - 11 mm

Part No.	Focal length	Divergence	Collimated Spot	Diameter	Length	Connector	Note	Data sheet
FOC-A4F30-FC	4 mm	3 mrad	Ø 1.1 mm	Ø 18 mm	29 mm	FC		request
FOC-A4F30-SMA	4 mm	3 mrad	Ø 1.1 mm	Ø 18 mm	29 mm	SMA		request
FOC-C10F12-FC	10 mm	1.2 mrad	Ø 2.75 mm	Ø 18 mm	30.4 mm	FC		request
FOC-C10F12-SMA	10 mm	1.2 mrad	Ø 2.75 mm	Ø 18 mm	30.4 mm	SMA		request
FOC-C15F10-FC	10 mm	1 mrad	Ø 4 mm	Ø 18 mm	30.4 mm	FC		request
FOC-C15F10-SMA	10 mm	1 mrad	Ø 4 mm	Ø 18 mm	30.4 mm	SMA		request
FOC-C15F10Q-FC	15 mm	1 mrad	Ø 4 mm	Ø 18 mm	30.4 mm	FC	quartz lens	request
FOC-C15F10Q-SMA	15 mm	1 mrad	Ø 4 mm	Ø 18 mm	30.4 mm	SMA	quartz lens	request
FOC-B18F07-FC	18 mm	0.7 mrad	Ø 5 mm	Ø 18 mm	34 mm	FC		request
FOC-B18F07-SMA	18 mm	0.7 mrad	Ø 5 mm	Ø 18 mm	34 mm	SMA		request
FOC-C20F10-FC	20 mm	1 mrad	Ø 5.5 mm	Ø 18 mm	30.4 mm	FC		request
FOC-C20F10-SMA	20 mm	1 mrad	Ø 5.5 mm	Ø 18 mm	30.4 mm	SMA		request
FOC-C20F05D-FC	20 mm	0.5 mrad	Ø 5.5 mm	Ø 18 mm	30.4 mm	FC	cemented double lens	request
FOC-C20F05D-SMA	20 mm	0.5 mrad	Ø 5.5 mm	Ø 18 mm	30.4 mm	SMA	cemented double lens	request
FOC-D30F07-FC	30 mm	0,7 mrad	Ø 8.2 mm	Ø 25.4 mm	56.1 mm	FC		request
FOC-D30F07-SMA	30 mm	0,7 mrad	Ø 8.2 mm	Ø 25.4 mm	56.1 mm	SMA		request
FOC-D40F07-FC	40 mm	0.7 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	FC		request
FOC-D40F07-SMA	40 mm	0.7 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	SMA		request
FOC-D40F08D-FC	40 mm	0.8 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	FC	cemented double lens	request
FOC-D40F08D-SMA	40 mm	0.8 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	SMA	cemented double lens	request
FOC-D40F02Q-FC	40 mm	0.2 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	FC	quartz lens	request
FOC-D40F02Q-SMA	40 mm	0.2 mrad	Ø 11 mm	Ø 25.4 mm	56.1 mm	SMA	quartz lens	request

Half Ball Lenses - Glass

Half ball lenses with high refraction index for shortest focal length.
Ideally suited for fiber coupling application, endoscopy, ...

Part No.	Size	Coating	Quality	Note	Data sheet
HBL-01	Ø 1 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-02	Ø 2 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-03	Ø 4 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-04	Ø4 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-05	Ø 5 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-06	Ø 6 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-08	Ø 8 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-10	Ø 10 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-15	Ø 15 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-18	Ø 18 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-25	Ø 25 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
HBL-38	Ø 38 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request

Ball Lenses - Glass

Half Ball lenses with high refraction index for shortest focal length.
Ideally suited for fiber coupling application, endoscopy,...

Part No.	Size	Coating	Quality	Note	Data sheet
BL-02	Ø 2 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-03	Ø 3 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-04	Ø 4 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-05	Ø 5 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-06	Ø 6 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-08	Ø 8 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-10	Ø 10 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-15	Ø 15 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-18	Ø 18 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-25	Ø 25 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request
BL-38	Ø 38 mm	uncoated	S/D 40/20	H-K9L glass, ovality <0.003	request

Powell Laser Line Generator Lenses - Glass

Patented Powell line generating lens offers very even intensity distribution over the complete length of the projected line

Part No.	Size	Fan Angle	Input Beam	wavelength
PL532-1-10	typ. Ø9 x 8 mm	10°	1 mm	532 nm
PL650-3-10	typ. Ø9 x 8 mm	10°	3 mm	650 nm
PL650-5-10	typ. Ø9 x 8 mm	10°	5 mm	650 nm
PL532-1-15	typ. Ø9 x 8 mm	15°	1 mm	532 nm
PL650-3-15	typ. Ø9 x 8 mm	15°	3 mm	650 nm
PL650-5-15	typ. Ø9 x 8 mm	15°	5 mm	650 nm
PL532-1-30	typ. Ø9 x 8 mm	30°	1 mm	532 nm
PL650-3-30	typ. Ø9 x 8 mm	30°	3 mm	650 nm
PL650-5-30	typ. Ø9 x 8 mm	30°	5 mm	650 nm
PL532-1-45	typ. Ø9 x 8 mm	45°	1 mm	532 nm
PL650-3-45	typ. Ø9 x 8 mm	45°	3 mm	650 nm
PL650-5-45	typ. Ø9 x 8 mm	45°	5 mm	650 nm
PL532-1-60	typ. Ø9 x 8 mm	60°	1 mm	532 nm
PL650-3-60	typ. Ø9 x 8 mm	60°	3 mm	650 nm
PL650-5-60	typ. Ø9 x 8 mm	60°	5 mm	650 nm
PL532-1-90	typ. Ø9 x 8 mm	90°	1 mm	532 nm
PL650-3-90	typ. Ø9 x 8 mm	90°	3 mm	650 nm
PL650-5-90	typ. Ø9 x 8 mm	90°	5 mm	650 nm

Cylinder Lenses - Glass

Glass cylinder lenses for line generation

Part No.	Diameter	Length	Width	Height	Note	Data sheet
CL2.0x5.0	Ø 2.0 mm	5.0 mm			BK7 glass	request
CL2.5x5.5	Ø 2.5 mm	5.5 mm			BK7 glass	request
CL4.0x6.0	Ø 4.0 mm	6.0 mm			BK7 glass	request
CL5.0x8.0	Ø 5.0 mm	8.0 mm			+/-25°, K9 glass	request
CL7.0x10.0	Ø 7.0 mm	10.0 mm			+/-15°, BK7 glass
HCL10.0x2.0		10.0 mm	2.0 mm		half-cylinder lens, +/-1.5°, BK7 glass	request
HCL10.0x7.0x3.7		10.0 mm	7.0 mm	3.7 mm	half-cylinder lens, +/-12°, BK7 glass	request

Line & Cross Line Generators - Molded Plastic

Part No.	Size	Fan Angle	Note	Data sheet
LG-35	Ø8 x 2 mm	35°	PMMA, line optik	request
LG-58	Ø8 x 2 mm	58°	PMMA, line optik	request
LG-90	Ø8 x 2 mm	90°	PMMA, line optik	request
LG-110	Ø8 x 3 mm	110°	PMMA, line optik	request
CG-58	Ø8 x 2 mm	2x 58°	PMMA, cross line optik	request

Diffractive Pattern Generators

Made from ruled PMMA sheets
standard figures: line, circle, cross line, cross line + circle (target)

Part No.	Size	Fan Angle	Note	Data sheet
DPG11	Ø7 x 1 mm	3°	circle, acrylic die
DOE-7C	Ø6.7 x 0.8 mm	5-10°	circle, acrylic die	request
DPG12	Ø7 x 1 mm	6°	line, acrylic die
DOE-7L	Ø6.7 x 0.8 mm	5-10°	line, acrylic die	request
DPG18	Ø7 x 1 mm	8.8°	cross line, acrylic die
DOE-7CL	Ø6.7 x 0.8 mm	5-10°	cross line, acrylic die	request
DOE-7T	Ø6.7 x 0.8 mm	5-10°	circle + cross line (target), acrylic die	request

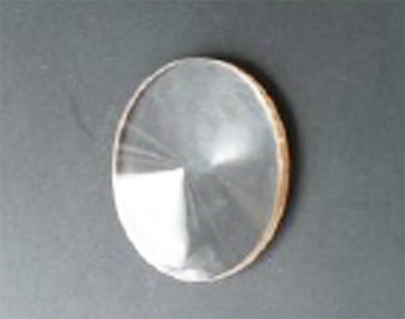

Axicon Lens

An AXICON transforms a laser beam into a ring shaped distribution. It can be used to turn a Gaussian beam into non-diffractive Bessel -like beams.
- S/D: 60/40
- ARC > 99% @ 400-700 nm
- CA > 90%

Part No.	Size	Fan Angle	Note	Data sheet
Axicon-12-165	Ø12.0 x 1.6 mm	360°		request

MOQ: 1 piece
