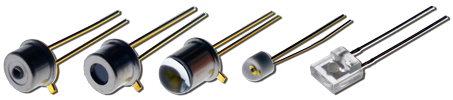

VERTIVAL CAVITY SURFACE EMITTING LASERS

Part No.	Wavelength	Output Power	Current	Mode	φ	Gpbs	Package	Note	Data sheet
VC850S-SMD	850 nm	0.5 mW	3.5 mA	SM	8°		SMD 0603
VC850M-SMD	850 nm	0.5 mW	4 mA	MM	6°		SMD 0603
VC850M-TO46GL	850 nm	2 mW	6 mA	MM	5°		TO-46, glass lens
VC850M-H-TO46GL	850 nm	10 mW	20 mA	MM	5°		TO-46, glass lens
VC850M-Z-TO46GL	850 nm	10 mW	20 mA	MM	8°		TO-46, glass lens	Zener diode
VC850M-H-TO46FW	850 nm	8 mW	20 mA	MM			TO-46, flat window
VC850M-Z-TO18FW	850 nm	10 mW	20 mA	MM			TO-46, flat window	Zener diode
VC980M-TO46FW	980 nm	1.5 mW	6 mA	MM	20°		TO-46, flat window

Part No.	Wavelength	Output Power	Current	Mode	Package	Note	Data sheet
VC850M2-MODULE	850 nm	max 15 mW	50 mA	MM	10 x 18 mm	phase out
VC850MZ-MODULE	850 nm	max 10 mW	20 mA	MM	10 x 18 mm
VC980M-MODULE	980 nm	max 0.75 mW	6 mA	MM	10 x 18 mm
