10 mm epoxy

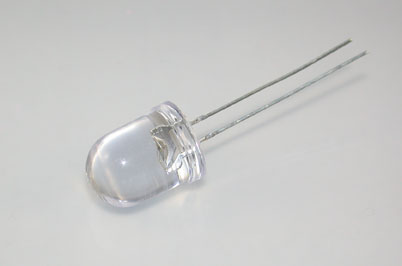

High power LED series, 4 parallel chips inside, If: 80 mA, 10 mm clear epoxy

		Wavelength	Po	Iop	φ	Uf	Note	Data sheet
	10W43-HCA-H	white	13-15 cd	80 mA	60°	4.0 V		request
	10B43-HCA-H	470 nm	8-10 cd	80 mA	60°	4.0 V		request
	10C43-HCA-H	505 nm	9-12 cd	80 mA	60°	4.0 V		request
	10G43-HCA-H	525 nm	15-18 cd	80 mA	60°	3.8 V		request
	10Y43-HCA-H	590 nm	7-8 cd	80 mA	60°	2.2 V		request

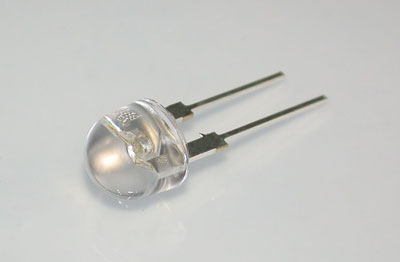

High power LED series, 4 parallel chips inside, If: 80 mA, 10 mm clear epoxy, copper lead frame

		Wavelength	Po	Iop	φ	Uf	Note	Data sheet
	RLS-10W2P4D	white	22 cd	80 mA	8-10°	3.4 V		request
	10W4DHCB-H	white	13-15 cd	80 mA	180°	4.0 V		request
	10B4DHCB-H	470 nm	8-10 cd	80 mA	180°	4.0 V		request
	10C4DHCB-H	505 nm	9-11 cd	80 mA	180°	4.0 V		request
	10G4DHCB-H	525 nm	15-18 cd	80 mA	180°	3.8 V		request
	10Y4DHCB-H	590 nm	8-9 cd	80 mA	180°	2.2 V		request
	10R4DHCB-H	625 nm	7-8 cd	80 mA	180°	2.2 V		request
