HIGH POWER MULTI CHIP SMD LEDS

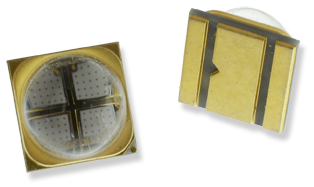

GD65 Series

Low cost high power 4-chip LED
6.5 x 6.5 mm SMD package with quartz glass lens
Wavelength: 365 nm - 395 nm

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note
GD65X-365M-DL	365 nm	2500 mW	1400 mA	6-8V	60°	6.5 x 6.5 x 4.75 mm	NEW
GD65X-385M-DL	385 nm	2500 mW	1400 mA	6-8V	60°	6.5 x 6.5 x 4.75 mm	NEW
GD65X-395M-DL	395 nm	2500 mW	1400 mA	6-8V	60°	6.5 x 6.5 x 4.75 mm	NEW

High power 4-chip UV-LED series in aluminium SMD package
6.3 x 6.3 x 1.4 mm, glass window
Wavelength: 365 nm - 385 nm

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
CUN9AF4A	395 nm	3750 mW	1000 mA	7.8 V	110°	6.3 x 6.3 x 1.4 mm

High power 4-chip UV-LED series in ceramic SMD package
6.8 x 6.8 x 2.1 mm, glass window
Wavelength: 365 nm - 385 nm

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Data sheet
UVLED-365-2000-SMD	365 nm	2000 mW	500 mA	15.0 V	120°	6.8 x 6.8 x 2.1 mm
UVLED-385-1200-SMD	385 nm	1200 mW	500 mA	14.8 V	120°	6.8 x 6.8 x 2.1 mm
UVLED-385-2400-SMD	385 nm	2400 mW	500 mA	14.8 V	120°	6.8 x 6.8 x 2.1 mm	request

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
XHL-375-SD	375 nm	95 mW	80 mA		125°	4.2 x 4.2 x 1.3 mm
XHL-400-SD	400 nm	150 mW	80 mA		125°	4.2 x 4.2 x 1.3 mm		request

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
XML-365-SD	365 nm	200 mW	300 mA		135°	20 x 20 x 7.9 mm
XML-385-SD	385 nm	1000 mW	300 mA		140°	20 x 20 x 7.9 mm

Part No.	Wavelength	Output Power	Current	φ	Size	Data sheet
WTFH01DS	white	3 cd	3x20 mA	120°	6.0 x 5.0 x 1.7 mm	request
GNFH01TS	523 nm	1.3 cd	3x20 mA	120°	6.0 x 5.0 x 1.7 mm	request
OMFH01TS	626 nm	540 mcd	3x20 mA	120°	6.0 x 5.0 x 1.7 mm	request

MOQ: 1 piece
