DEEP UV SMD LEDs - 275 nm

Deep Ultra Violet Light Emitting Device at typically 275 nm.

Applications: Forensic analysis, disinfection, air and water sterilization, protein analysis, DNA sequencing and drug discovery.

pdf

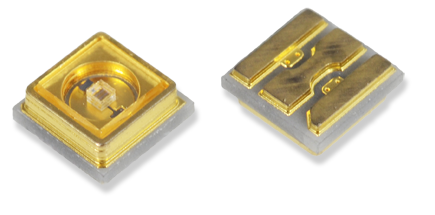

GD35R-275Z-F

Single chip AlGaN based high power 275nm LED in 3535 SMD package with Quartz glass window and built-in Zener Diode

ready for reflow soldering.

Part No. WL WL tol. FWHM Po Io angle Package Lens Note Data sheet
GD35R-275Z-F 275 nm ± 5 nm 14 mW 150 mA 120 ° 3535 SMD flat window NEW pdf
pdf

UVTOP270-SMD series

Single chip AlGaN based 275nm LED in ceramic 3535 SMD package with Quartz glass window (SiO2),

ready for reflow soldering.

Part No. WL WL tol. FWHM Po Io angle Package Lens Note Data sheet
UVTOP270-FW-SMD 275 nm ± 5 nm 11 nm 3 mW 30 mA 120 ° 3535 SMD flat window ESD protection pdf
UVTOP270H-FW-SMD 275 nm ± 5 nm 11 nm 11.5 mW 100 mA 125 ° 3535 SMD flat window ESD protection pdf
pdf

CUD8AF1 series

Single chip AlGaN based 275nm LED in 6363 aluminium SMD package with Quartz glass window, and

integrated ESD protection device.

Part No. WL WL tol. FWHM Po Io angle Package Lens Note Data sheet
CUD8AF1C 275 nm ± 5 nm 10 nm 3 mW 30 mA 115 ° 6363 SMD flat window integrated ESD protection pdf
CUD8AF1D 275 nm ± 5 nm 10 nm 19 mW 200 mA 120 ° 6363 SMD flat window integrated ESD protection pdf
MOQ: 1 piece
