DIODE LASER SYSTEMS - 405 nm

pdf

RLTMDL-405 series

  • Operation Mode: CW

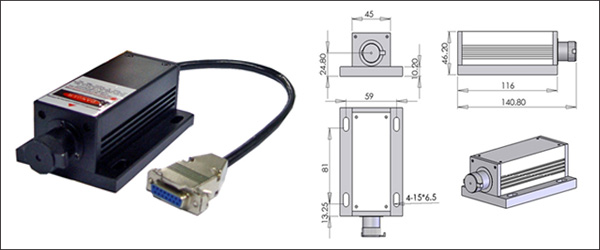

  • Seperate laser head, cooled by TEC

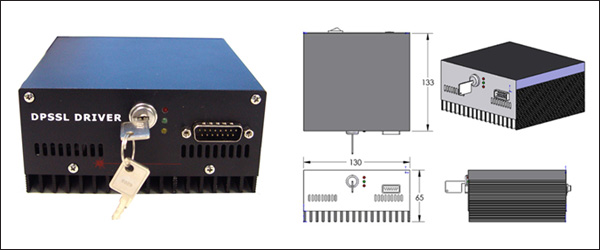

  • Power supply included, fixed output power, 90-264 VAC
  • Beam divergence: 0.5 mrad
  • Beam diameter at aperature: 4.0 mm
  • RoHS conform
  • FDA and CE certified
  • Lifetime: 10.000 hours
  • Warranty: 1 year
Part No. Wavelength Power Stability Laser Head Power Supply Note Data sheet
RLTMDL-405-10-5 405 nm 10 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-20-5 405 nm 20 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-50-5 405 nm 50 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-100-5 405 nm 100 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-200-5 405 nm 200 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-300-5 405 nm 300 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
RLTMDL-405-500-5 405 nm 500 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA pdf
Additional Options (please send us a request)
Power Supply:

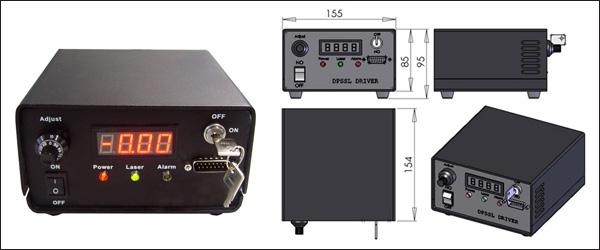

PSU-LED, output power adjustable by knob, contains operating current LED display, 90 - 264 VAC.
Output Stability:
<3 % and <1 %
Modulation:
TTL and Analog modulation are available up to 30kHz.
Line Generator:
BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
Fiber coupling:
MM fiber, different fiber cores, FC or SMA905 connector.
Fiber collimator:

RLTMxL FOC, contains a AR-coated aspheric lens to connect onto the end of FC or SMA905 connector.

Available as adjustable or fixed.

pdf

RLTMLL-405 series, Low Noise

  • Operation Mode: CW
  • Noise of amplitude: <1%
  • Seperate laser head, cooled by TEC
  • Power supply included, fixed output power, 90-264 VAC
  • Beam divergence: 0.5 mrad
  • Beam diameter at aperature: 4.0 mm
  • RoHS conform
  • FDA and CE certified
  • Lifetime: 10.000 hours
  • Warranty: 1 year
Part No. Wavelength Power Stability Laser Head Power Supply Note Data sheet
RLTMLL-405-10-5 405 nm 10 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-20-5 405 nm 20 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-50-5 405 nm 50 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-100-5 405 nm 100 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-200-5 405 nm 200 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-300-5 405 nm 300 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
RLTMLL-405-500-5 405 nm 500 mW cw <5 % 139 x 73 x 46.2 mm PSU-FDA request
Additional Options (please send us a request)
Power Supply:
PSU-LED, output power adjustable by knob, contains operating current LED display, 90 - 264 VAC.
Output Stability:
<3 % and <1 %
Modulation:
TTL and Analog modulation are available up to 30kHz.
Line Generator:
BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
Fiber coupling:
MM fiber, different fiber cores, FC or SMA905 connector.
Fiber collimator:

RLTMxL FOC, contains a AR-coated aspheric lens to connect onto the end of FC or SMA905 connector.

Available as adjustable or fixed.

pdf

RLTMFC-405 series, Fiber Coupled

RLTMFC series combined laser diode, laser cavity, fiber coupling, power supply, LED display and crystal temperature control in one box.

  • One-box system, 90-264 VAC
  • Air cooled
  • fiber core diameter: 100, 200 or 400 µm (others on request)
  • Adjustable output power, temperature controlled, LED display
  • Operating mode: CW, pulse (TTL or analog) on request
  • Pulse mode: adjust. pulse width, pulse period and time limit
  • Lifetime: 10.000 hours
  • Warranty: 1 year
Part No. Wavelength Power Stability Dimensions Connector Note Data sheet
RLTMFC-405-10-5 405 nm 10 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-20-5 405 nm 20 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-50-5 405 nm 50 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-100-5 405 nm 100 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-150-5 405 nm 150 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-200-5 405 nm 200 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
RLTMFC-405-250-5 405 nm 250 mW cw <5 % 243 x 249 x 127 mm FC or SMA905 pdf
Additional Options (please send us a request)
Fiber collimator:

RLTMxL FOC, contains a AR-coated aspheric lens to connect onto the end of FC or SMA905 connector.

Available as adjustable or fixed.

MOQ: 1 piece
