RLTMDL-785 series
- • Operation Mode: CW
- • Seperate laser head, cooled by TEC
- • Power supply included: PSU-FDA, 90 - 264 VAC
- • Beam divergence: < 3.0 mrad
- • Beam diameter at aperature: ~5x8 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
| 785 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
| RLTMDL-785-100-5 | 785 nm | 100 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA |  | ||
| RLTMDL-785-300-5 | 785 nm | 300 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
| RLTMDL-785-500-5 | 785 nm | 500 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
| RLTMDL-785-1W-5 | 785 nm | 1000 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
- Power Supply:
PSU-LED, output power continuously adjustable with current display, 90 - 264 VAC.
PSU-OEM, driving electronics only, no power supply included, for system integration.
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 10 kHz and 30 kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.
RLTMDL-785R series, Round Spot
- • Operation Mode: CW
- • Round Spot Beam Profil
- • Seperate laser head, cooled by TEC
- • Power supply included: PSU-FDA, 90 - 264 VAC
- • Beam divergence: < 8.0 mrad
- • Beam diameter at aperature: ~2.0 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
| 785 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
| RLTMDL-785R-50-5 | 785 nm | 50 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
| RLTMDL-785R-100-5 | 785 nm | 100 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
| RLTMDL-785R-150-5 | 785 nm | 150 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
| RLTMDL-785R-300-5 | 785 nm | 300 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | | ||
- Power Supply:
PSU-LED, output power continuously adjustable with current display, 90 - 264 VAC.
PSU-OEM, driving electronics only, no power supply included, for system integration.
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 10 kHz and 30 kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.
RLTMLL-785 series, Low Noise
- • Operation Mode: CW
- • Low Noise, < 1 %
- • Seperate laser head, cooled by TEC
- • Power supply included: PSU-FDA, 90 - 264 VAC
- • Beam divergence: < 3.0 mrad
- • Beam diameter at aperature: ~5x8 mm
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
| 785 nm | Wavelength | Po | Stability | Laser Head | Power Supply | Note | Data sheet | |
| RLTMLL-785-100-5 | 785 nm | 100 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
| RLTMLL-785-300-5 | 785 nm | 300 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
| RLTMLL-785-500-5 | 785 nm | 500 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
| RLTMLL-785-1W-5 | 785 nm | 1000 mW cw | < 5 % | 141 x 46 x 73 mm | PSU-FDA | low noise | request | |
- Power Supply:
PSU-LED, output power continuously adjustable with current display, 90 - 264 VAC.
PSU-OEM, driving electronics only, no power supply included, for system integration.
- Output Stability:
- < 3 % and < 1 %
- Modulation:
TTL and Analog modulation are available up to 10 kHz and 30 kHz.
- Line Generator:
- BK7 glass, available fan angles are 7°, 10°, 30°, 45°, 60°, 75° and 90°.
- Fiber coupling:
- MM fiber, different fiber cores, FC or SMA 905 connector.
RLTMFC-785D series, Fiber Coupled
- • "one box" system, 5VDC@5A or 7-15VDC@5A or 220-240VAC adaptor
- • fiber core diameter: 100 µm included (200 µm and 400 µm on request)
- • Adjustable power, temperature controlled, LED display
- • Operation mode: CW
- • RoHS conform
- • FDA and CE certified
- • Lifetime: 10.000 hours
- • Warranty: 1 year
| 785 nm | Wavelength | Po | Stability | Laser Unit | Connector | Note | Data sheet | |
| RLTMFC-785D-200-3 | 785 nm | 200 mW cw | < 3 % | 130 x 98 x 51 mm | SMA-905 | | ||
| RLTMFC-785D-300-3 | 785 nm | 300 mW cw | < 3 % | 130 x 98 x 51 mm | SMA-905 | | ||
| RLTMFC-785D-450-3 | 785 nm | 450 mW cw | < 3 % | 130 x 98 x 51 mm | SMA-905 | | ||
- Output Stability:
- < 3 % (default) < 2 % , < 1 % (optional)
- Modulation:
TTL available up to 100 kHz.
- Fiber coupling:
- 200 µm or 400 µm fiber cores
RLTMFC-785D series with narrow spectral lines (available up to 700 mW) is a continuous wave laser module designed specially for Raman spectroscopy, which have integrated laser drivers and thermoelectric coolers. Its compact dimension and convenient functions makes it optimal for industrial and medical applications.

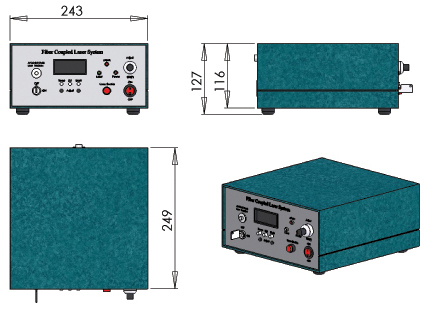

RLTMFC-785 series, Fiber Coupled
- • "one box" system, 90-264 VAC power supply integrated
- • fiber core diameter: 100 µm, 200 µm, 400 µm (others on request)
- • Adjustable power, temperature controlled, LED display
- • Operation mode: CW, pulse (TTL or Analog) on request
- • Pulse mode: adjustable pulse width, puls period and time limit
- • Air cooled
| 785 nm | Wavelength | Po | Stability | Laser Unit | Connector | Note | Data sheet | |
| RLTMFC-785-500-5 | 785 nm | 500 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
| RLTMFC-785-1W-5 | 785 nm | 1000 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
| RLTMFC-785-1.5W-5 | 785 nm | 1500 mW cw | < 5 % | 249 x 243 x 127 mm | SMA-905 | request | ||
MOQ: 1 piece
