QUANTUM OPTICS DEVICES

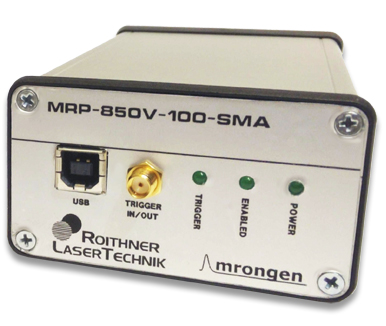

MRP LightPulser

Ultrafast VCSEL/LED triggered Light Source

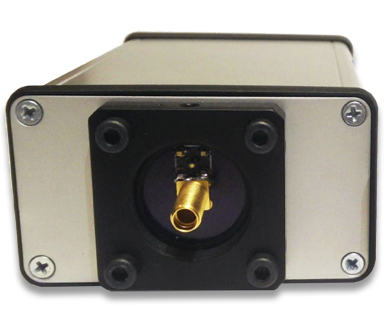

These custom build and individually characterized light sources offer a compact and affordable solution for ultrafast illumination applications. Using LEDs, nearly arbitrary wavelengths can be realized with sub-ns timing precision. In conjunction with 850nm VCSELs, light curves as short as 100 ps are achieved. The light source is attached via a SMA breakout board, so that different sources can be used with the same module. Biasing of the electric drive pulse allows for intensity modulation.

Developed and designed by https://mrongen.de/

Features:

- VCSEL/LED light source

- 370 - 850 nm available

- Light curves from 100 ..1000 ps

- up to 25 kHz

- Interchangeable light modules

- Individual characterization of light source

- SMA connector

- USB interface

Documents and Downloads:

Data sheet
Scientific paper on MRP
Characterization of light source (sample)

Part No.	Wavelength	Pulse range	Biasing	Repitition rate	Connector	Interface	Dimensions
MRP-850V-100-SMA	850 nm	100 ..1000 ps	-2.5 ..0.7 V	< 25 kHz	SMA	USB	145 x 78 x 43 mm

Software

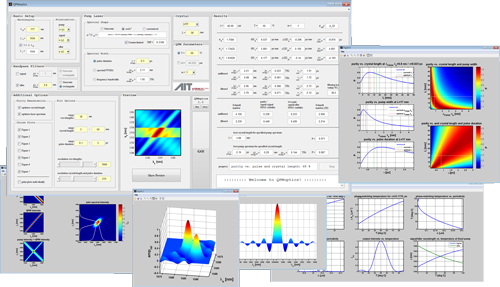

QPMoptics

QPMoptics is a scientific software which is able to simulate any experimental setup based on photon pair creation by spontaneous parametric down-conversion in periodically poled crystals. Moreover, our software is able to optimise experimental parameters for the sake of high down-conversion efficiency and quantum performance. Given the optional input of any relevant individual experimental setup, the large number of output parameters and plots and the user-friendly intuitive graphical user interface, this software can be a helpful tool to any experimentalist who uses the quasi-phase-matching technique to generate collinearly propagating photon pairs.

Features:

- Simulates photon-pair generation in seven different crystals
(including ppKTP and ppLN)

- Gaussian and sech2 pulses as well as customised laser spectrum

- Gaussian and rectangular bandpass filtering

- Phase-matching conditions, poling periodicity, temperature tuning

- Refractive indices, group delay and temporal walk-off

- Spectral distribution of generated photons

- Schmidt number, purity and Hong-Ou-Mandel visibility

- Optimises crystal length and pump spectrum for maximal purity

- 36 different plots, 43 different numerical results

- Purchase of one licence to unlock the current and any future version

Documents and Downloads:

Applications, Links
Handbook
Software	Demo
	v1.1 (key required)

Part No.	Type	Language	Operating System	Key	Note	Release	Size
QPMoptics	Software	English	Windows, 64-bit	USB License Dongle	MATLAB runtime R2013B (8.2) is required	1.0	30.6 MB

Single Photon Detection Module

Single Photon Counting Module with less than 20 dark counts/s

QD800c-fQ series of Single Photon Counting Modules offers a unique combination of low dark count rates, very low jitter and a fast quenching circuit in a miniature package. The special mechanical design allows a flexible combination with existing systems in the laboratory. Incoming photons generate corresponding electrical pulses which may be conveniently read out at the digital output.

This product was developed by AIT in cooperation with IQOQI

Features:

- Low dark rates

- Very low jitter

- Fast quenching circuit

- High detection efficiency (400 nm to 1000 nm)

- digital output pulse (2V) at SMA connector

- Single 5 V DC supply operation

- Compatible with third party adapters

Documents and Downloads:

Data sheet
Data sheet APD C30902SH
Applications, Links

Part No.	Timing Resolution	Dead Time Range	Dark Count Rate	Spectral Range	Responsivity @830 nm	Quantum Efficiency @830 nm	Connector
QD800c-fQ-500	300 ps	300 ns	<500 counts/s	400-1000 nm	128 A/W	60 %	several
QD800c-fQ-50	300 ps	300 ns	<50 counts/s	400-1000 nm	128 A/W	60 %	several
QD800c-fQ-20	300 ps	300 ns	<20 counts/s	400-1000 nm	128 A/W	60 %	several

MOQ: 1 piece
