ELECTRONICS FOR LEDS
LED Tester
Compact handheld LED Tester
- selectable slots: 2, 5, 10, 20, 30, 50, 70 or 150 mA
- suitable for standard and piranha LEDs
- contains a power control LED
- battery included
| Part No. | Output Current | Weight | Size | Note | Data sheet |
|---|---|---|---|---|---|
| LED Tester | 2 - 150 mA | 75 g | 80 x 55 x 22 mm | battery included | request |
LED DRIVER BOARDS (PCB)
Drivers for LEDs
- constant current logic
- easy to install
- small size
| Part No. | Output Current | Output Voltage | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|

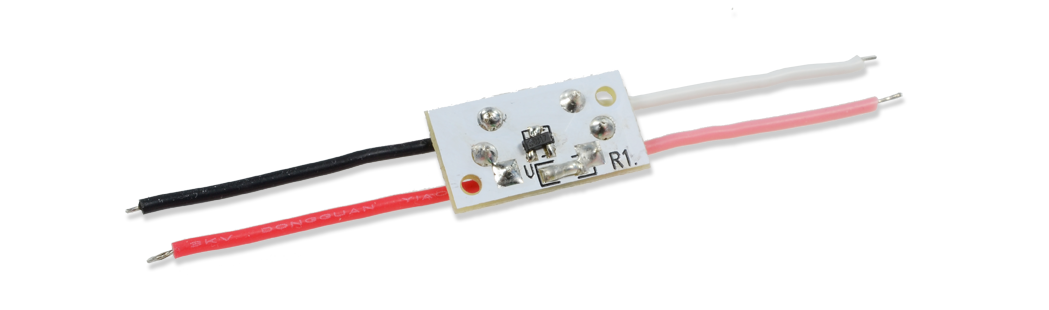

| LLP20 | 20 - 30 mA | 1.5 VDC | 21 x 11 mm | for 1-5 LEDs (Vf = 3.0 V) |  |
|

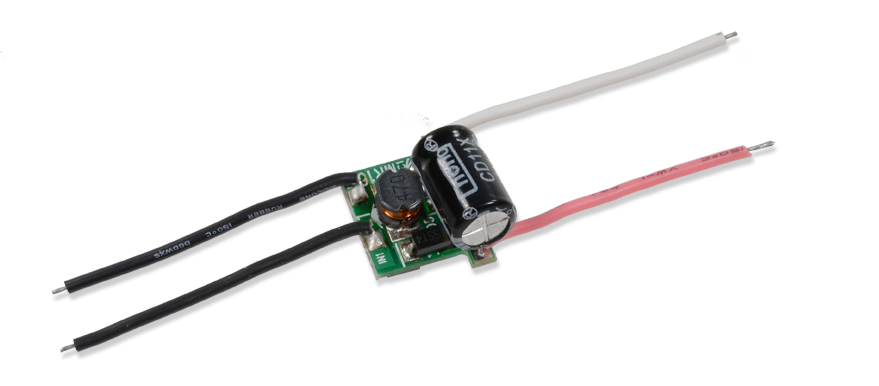

| CDDL350 | 350 mA | 12 - 24 V | 7 - 30 VDC | 18 x 13 mm | |
|
| CDDL700 | 700 mA | 12 - 24 V | 7 - 30 VDC | 18 x 13 mm | |
POWER SUPPLIES FOR HIGH POWER LEDS
Supply voltage 12-24 VDC
PTDCC constant current drivers
- DC constant current output
- Thermal overload protection
- Short circuit protection
- CE certified, complies EN 61347
| Part No. | Output Current | Output Power | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|
| PTDCC/S350/12-24 | 350 mA | 6 W | 12 - 24 VDC | 30 x 14 x 8 mm | |
Supply voltage 220-240 VDC
PTDCC constant current drivers
- DC constant current output
- Output current selectable by jumper
- Protection: thermal, overload, overvoltage, short circuit
- CE certified, complies EN 61347
| Part No. | Output Current | Output Power | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|
| Multipower15 | 350, 500, 700 mA | 15 W | 220 - 240 VAC | 34 x 115 x 19 mm | current selectable by jumper | |
Supply voltage 95-240 VAC
PTDCCL constant current drivers
- DC constant current output
- Thermal overload protection
- built in type
- CE certified, complies EN 61347
| Part No. | Output Current | Output Power | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|

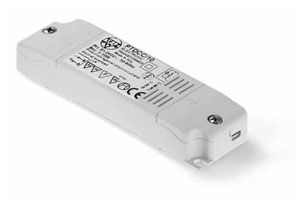

| PTDCCL/10/350 | 350 mA | 10 W | 95 - 240 VAC | 22 x 145 x 22 mm | max. 8-11 pcs. 1W LED in series | |
Supply voltage 220-240 VAC
PTDCC constant current drivers
- DC constant current output
- Thermal overload protection
- Short circuit protection
- CE certified, complies EN 61347
| Part No. | Output Current | Output Power | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|

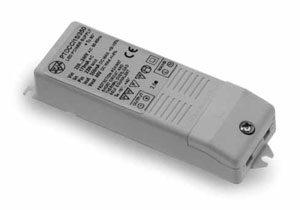

| PTDCC/15/500 | 500 mA | 17 W | 220 - 240 VAC | 38 x 123 x 21 mm | max. 12-13 pcs. 1W LED in series | |
| PTDCC/15/700 | 700 mA | 17 W | 220 - 240 VAC | 38 x 123 x 21 mm | max. 5-6 pcs. 3W LED in series | |
Supply voltage 220-240 VAC
PTDCC constant current drivers
- DC constant current output
- Thermal overload protection
- wide output current range 200 - 950 mA
- Short circuit protection
- CE certified, complies EN 61347
| Part No. | Output Current | Output Power | Input Voltage | Size | Note | Data sheet |
|---|---|---|---|---|---|---|
| Multipower30 | 200-950 mA | 30 W | 220 - 240 VAC | 103 x 67 x 30 mm | current selectable by dip switches | |
MOQ: 1 piece
Austria, Tel.: +43 1 586 52 43 - 0, Fax +43 1 586 52 43 - 44
