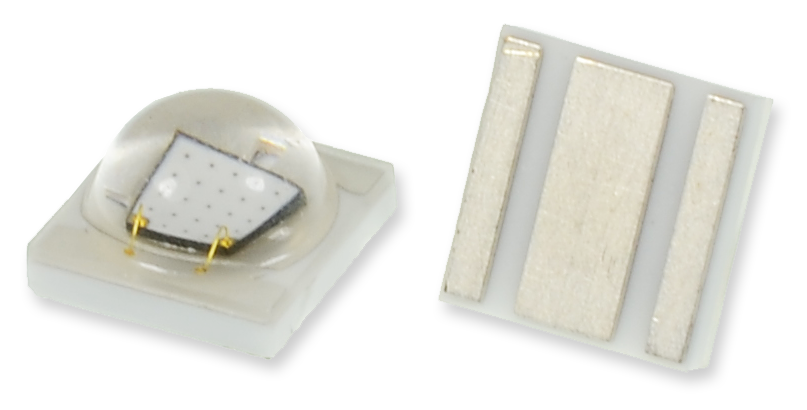

HIGH POWER SINGLE CHIP SMD LEDS

GD35 Series

Low cost high power LED
3.5 x 3.5 mm SMD package with quartz glass lens (<400nm) and silicone resin lens (>445nm)
Wavelength: 370 nm - 1330 nm

Part No.	Wavelength	Output Power	Current	φ	Size	Note
GD35X-370-DL	370 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-380-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-390-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35X-400-DL	380 nm	600 mW	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-445-DL	445 nm	10 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-465-DL	465 nm	30 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-480-DL	480 nm	55 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-495-DL	495 nm	90 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-525-DL	525 nm	120 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-590-DL	590 nm	50 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-625-DL	625 nm	65 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-655-DL	655 nm	25 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35V-675-DL	675 nm	10 lm	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-735-DL	735 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-845-DL	845 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-945-DL	945 nm	250 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-1045-DL	1045 nm	200 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW
GD35N-1330-DL	1330 nm	70 mw	350 mA	120°	3.5 x 3.5 x 2.1 mm	NEW

SMB1N Series

High power LED, power chip technology
Chip size 1 x 1 mm², mounted on copper heat sink into a heat resistant polyamide (PA9T) SMD package, without leads
Base size: 5.0 x 5.0 mm
silicone / epoxy mold, flat or lens
Wavelength: 365 nm - 1550 nm available

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
SMB1N-BB450	400-1000 nm	300 mW	500 mA	3.1 V	130°	5.0 x 5.2 x 1.0 mm	broadband LED
SMB1N-BB450-02	400-1000 nm	300 mW	500 mA	3.1 V	20°	5.0 x 5.2 x 5.5 mm	broadband LED
SMB1N-365V	365 nm	500 mW	500 mA	<4.5 V	126°		Zener diode
SMB1N-365V-02	365 nm	500 mW	500 mA	<4.5 V	20°
SMB1N-375V	375 nm	560 mW	500 mA	<4.5 V	126°		Zener diode
SMB1N-375V-02	375 nm	560 mW	500 mA	<4.5 V	20°
SMB1N-385V	385 nm	720 mW	500 mA	<3.9 V	122°		Zener diode
SMB1N-385V-02	385 nm	720 mW	500 mA	<3.9 V	22°		Zener diode
SMB1N-395V	395 nm	750 mW	500 mA	<4.5 V	126°
SMB1N-395V-02	395 nm	750 mW	500 mA	<4.5 V	22°
SMB1N-405V	405 nm	710 mW	500 mA	<4.2 V	126°
SMB1N-405V-02	405 nm	710 mW	500 mA	<4.2 V	22°
SMB1N-H415	415 nm	300 mW	350 mA	<4.5 V	124°			request
SMB1N-H415-02	415 nm	300 mW	350 mA	<4.5 V	22°			request
SMB1N-420H	420 nm	420 mW	350 mA	<3.8 V	126°
SMB1N-420H-02	420 nm	420 mW	350 mA	<3.8 V	20°
SMB1N-430H	430 nm	500 mW	350 mA	<3.8 V	128°
SMB1N-430H-02	430 nm	500 mW	350 mA	<3.8 V	22°
SMB1N-435V	435 nm	800 mW	500 mA	<4.5 V	126°		Zener diode
SMB1N-435V-02	435 nm	800 mW	500 mA	<4.5 V	22°		Zener diode	request
SMB1N-D450	450 nm	480 mW	350 mA	<4.0 V	130°
SMB1N-D450-02	450 nm	480 mW	350 mA	<4.0 V	20°
SMB1N-D470	470 nm	480 mW	350 mA	<3.8 V	130°
SMB1N-D470-02	470 nm	470 mW	350 mA	<3.8 V	20°
SMB1N-490H	490 nm	240 mW	350 mA	<3.8 V	130°
SMB1N-490H-02	490 nm	240 mW	350 mA	<3.8 V	22°
SMB1N-515V	515 nm	230 mW	350 mA	<3.6 V	126°
SMB1N-515V-02	515 nm	250 mW	350 mA	<3.6 V	18°
SMB1N-D520	520 nm	240 mW	350 mA	<3.8 V	130°
SMB1N-D520-02	520 nm	250 mW	350 mA	<3.8 V	20°
SMB1N-525V	525 nm	230 mW	350 mA	<3.6 V	126°
SMB1N-525V-02	525 nm	230 mW	350 mA	<3.6 V	22°
SMB1N-550H	550 nm	100 mW	350 mA	<3.4 V	130°		NEW
SMB1N-550H-02	550 nm	100 mW	350 mA	<3.4 V	20°		NEW
SMB1N-590	590 nm	120 mW	350 mA	<3.0 V	126°
SMB1N-590-02	590 nm	120 mW	350 mA	<3.0 V	18°
SMB1N-620D	620 nm	190 mW	350 mA	<2.7 V	128°			request
SMB1N-620-02	620 nm	190 mW	350 mA	<2.7 V	20°
SMB1N-620D-02	620 nm	190 mW	350 mA	<2.7 V	20°			request
SMB1N-D630	630 nm	330 mW	350 mA	<2.8 V	126°
SMB1N-D630-02	630 nm	290 mW	350 mA	<2.8 V	18°
SMB1N-D660N	660 nm	320 mW	350 mA	<3.0 V	126°
SMB1N-D660N-02	660 nm	320 mW	350 mA	<3.0 V	20°
SMB1N-670D	670 nm	520 mW	600 mA	<3.0 V	128°
SMB1N-670D-02	670 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-680D	680 nm	520 mW	600 mA	<3.0 V	124°
SMB1N-680D-02	680 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-690D	690 nm	520 mW	600 mA	<3.0 V	128°
SMB1N-690D-02	690 nm	520 mW	600 mA	<3.0 V	18°
SMB1N-700D	700 nm	200 mW	500 mA	<2.3 V	128°
SMB1N-700D-02	700 nm	200 mW	500 mA	<2.3 V	20°
SMB1N-720	720 nm	170 mW	600 mA	<2.8 V	130°		phase out
SMB1N-720D	720 nm	520 mW	600 mA	<2.4 V	128°			request
SMB1N-720D-02	720 nm	520 mW	600 mA	<2.4 V	20°
SMB1N-735-02	735 nm	200 mW	600 mA	<2.3 V	22°		phase out	request
SMB1N-740D	740 nm	290 mW	600 mA	<2.4 V	126°
SMB1N-740D-02	740 nm	290 mW	600 mA	<2.4 V	18°
SMB1N-750-02	750 nm	290 mW	800 mA	<2.4 V	20°		phase out
SMB1N-750D	750 nm	700 mW	800 mA	<2.5 V	128°
SMB1N-750D-02	750 nm	700 mW	800 mA	<2.5 V	18°			request
SMB1N-760D	760 nm	400 mW	800 mA	<2.5 V	128°
SMB1N-760D-02	760 nm	400 mW	800 mA	<2.5 V	20°
SMB2N-760D-I	760 nm	800 mW	800 mA	<5.0 V			2 chip dies, isolated	request
SMB3N-760D-I	760 nm						3 chip dies, isolated	request
SMB1N-770	770 nm	290 mW	800 mA	<2.5 V	130°
SMB1N-770-02	770 nm	330 mW	800 mA	<2.5 V	20°
SMB1N-780D	780 nm	500 mW	800 mA	<2.6 V	128°
SMB1N-780D-02	780 nm	500 mW	800 mA	<2.6 V	18°
SMB2N-780D-I	780 nm	800 mW	800 mA	<5.2 V			2 chip dies, isolated	request
SMB1N-800D	800 nm	450 mW	800 mA	<2.6 V	128°
SMB1N-800D-02	800 nm	450 mW	800 mA	<2.6 V	18°
SMB1N-810D	810 nm	560 mW	800 mA	<2.5 V	126°
SMB1N-810D-02	810 nm	560 mW	800 mA	<2.5 V	20°
SMB1N-830N	830 nm	280 mW	800 mA	<2.2 V	128°
SMB1N-830N-02	830 nm	340 mW	800 mA	<2.2 V	18°
SMB1N-850D	850 nm	650 mW	1 A	<2.5 V	124°
SMB1N-850D-02	850 nm	630 mW	1 A	<2.5 V	22°
SMB1N-850DS	850 nm	1.4W	1 A	<4.2 V	128°
SMB1N-850DS-02	850 nm	1.4W	1 A	<4.2 V	20°
SMB2N-850D-I	850nm	1.2 W	1 A	<4.8 V	122°		3 chips, isolated	request
SMB3N-850D-I	850nm	1.8 W	1 A	<7.5 V	120°		3 chips, isolated
SMB1N-870	870 nm	440 mW	1 A	<2.0 V	130°		phase out
SMB1N-880	880 nm	320 mW	800 mA	<2.2 V	128°
SMB1N-880D	880 nm	610 mW	800 mA	<2.5 V	130°
SMB1N-880D-02	880 nm	610 mW	800 mA	<2.5 V	18°
SMB1N-890D	890 nm	590 mW	800 mA	<2.5 V	128°			request
SMB1N-890D-02	890 nm	590 mW	800 mA	<2.5 V	18°			request
SMB1N-890DS	890 nm	1.4 W	1 A	<4.0 V	128°
SMB1N-890DS-02	890 nm	1.4 W	1 A	<4.0 V	20°
SMB1N-910D	910 nm	850m W	1 A	<2.5 V	126°
SMB1N-910D-02	910 nm	850m W	1 A	<2.5 V	20°
SMB1N-940-02	940 nm	120 mW	500 mA	<1.8 V	24°		phase out
SMB1N-940D	940 nm	630 mW	1 A	<1.8 V	124°
SMB1N-940D-02	940 nm	630 mW	1 A	<1.8 V	22°
SMB1N-940DS	940 nm	1.3 W	1 A	<3.8 V	128°
SMB1N-940DS-02	940 nm	1.3 W	1 A	<3.8 V	20°
SMB1N-970D	970 nm	780 mW	1 A	<2.5 V	130°			request
SMB1N-970D-02	970 nm	780 mW	1 A	<2.5 V	20°			request
SMB1N-980D	980 nm	400 mW	800 mA	<2.0 V	128°
SMB1N-980D-02	980 nm	400 mW	800 mA	<2.0 V	20°
SMB1N-1050	1050 nm	35 mW	500 mA	<1.65 V	134°
SMB1N-1050-02	1050 nm	35 mW	500 mA	<1.65 V	20°
SMB1N-1050D	1050 nm	160 mW	1 A	<2.2 V	128°
SMB1N-1050D-02	1050 nm	200 mW	1 A	<2.2 V	18°
SMB1N-1050GD	1050 nm	700 mW	1 A	<1.8 V	128°
SMB1N-1050GD-02	1050 nm	750 mW	1 A	<1.8 V	20°
SMB1N-1100D	1100 nm	280 mW	1 A	<1.8 V	128°
SMB1N-1100D-02	1100 nm	350 mW	1 A	<1.8 V	18°
SMB1N-1150D	1150 nm	210 mW	1 A	<1.8 V	128°
SMB1N-1150D-02	1150 nm	260 mW	1 A	<1.8 V	18°
SMB1N-1200-02	1200 nm	35 mW	500 mA	<1.4 V	18°
SMB1N-1200S	1200 nm	50 mW	500 mA	<1.4 V	136°
SMB1N-1200D	1200 nm	180 mW	1 A	<1.7 V	128°
SMB1N-1200D-02	1200 nm	220 mW	1 A	<1.7 V	18°
SMB1N-1300L	1300 nm	25 mW	500 mA	<1.4 V	134°
SMB1N-1300D	1300 nm	160 mW	1 A	<1.7 V	128°
SMB1N-1300D-02	1300 nm	200 mW	1 A	<1.7 V	18°
SMB1N-1450D	1450 nm	72 mW	1 A	<1.7 V	128°
SMB1N-1450D-02	1450 nm	90 mW	1 A	<1.7 V	18°
SMB1N-1550S	1550 nm	20 mW	500 mA	<1.4 V	136°
SMB1N-1550D	1550 nm	50 mW	1 A	<1.7 V	128°
SMB1N-1550D-02	1550 nm	62 mW	1 A	<1.7 V	20°
SMB1N-1650S	1650 nm	16 mW	500 mA	<1.5 V	136°			request
SMB1N-1650-02	1650 nm	16 mW	500 mA	<1.5 V	20°
SMB1N-1650D	1650 nm	36 mW	1 A	<1.6 V	128°
SMB1N-1650D-02	1650 nm	45 mW	1 A	<1.6 V	18°
SMB1N-1900D	1900 nm	27 mW	1 A	<1.6 V	128°		NEW
SMB1N-1900D-02	1900 nm	30 mW	1 A	<1.6 V	18°		NEW

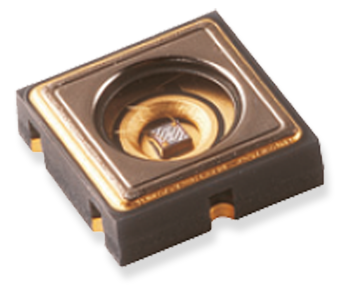

NCA Series

Glass window
Ceramic SMD 6868 package
Low thermal resistance
Integrated ESD protection
Lead free product / RoHS compliant

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
UVLED-365-750-SMD	365 nm	750 mW	500 mA	3.8 V	120°	6.8 x 6.8 x 1.9 mm	glass window
UVLED-385-800-SMD	385 nm	800 mW	500 mA	3.6 V	120°	6.8 x 6.8 x 1.9 mm	glass window

NC2 Series

High power UV LEDs
Industry standard SMD 3535 package
silicone resin
Zener diode, ESD protection

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size
UVLED-365-NC2	365 nm	150 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-375-NC2	375 nm	280 mW	500 mA	3.6 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-385-NC2	385 nm	350 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-395-NC2	395 nm	360 mW	500 mA	3.7 V	120°	3.5 x 3.5 x 0.9 mm
UVLED-405-NC2	405 nm	380 mW	500 mA	3.6 V	120°	3.5 x 3.5 x 0.9 mm

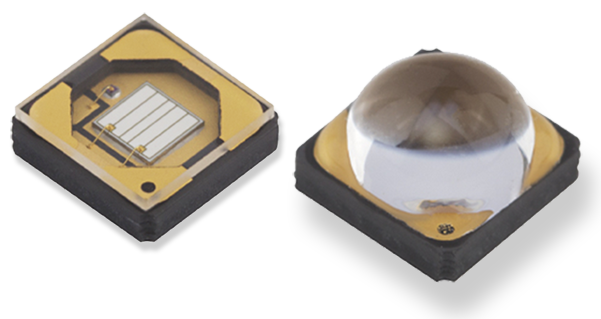

NV1 Series

High power UV LEDs
Industry standard SMD 3535 package
silicone resin lens
Zener diode, ESD protection

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Data sheet
UVLED-365-NV1	365 nm	780 mW	500 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm	request
UVLED-375-NV1	375 nm	1160 mW	700 mA	3.6 V	130°	3.5 x 3.5 x 1.2 mm	request
UVLED-385-NV1	385 nm	1340 mW	700 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm
UVLED-395-NV1	395 nm	1340 mW	700 mA	3.7 V	130°	3.5 x 3.5 x 1.2 mm	request
UVLED-405-NV1	405 nm	1420 mW	700 mA	3.6 V	140°	3.5 x 3.5 x 1.2 mm

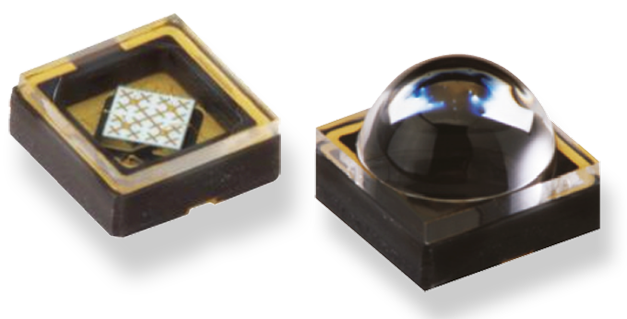

NV2 Series

High power UV LEDs
ceramic 3535 SMD package
flat glass window / glass dome lens
Zener diode, ESD protection

Part No.	Wavelength	Output Power	Current	φ	Size	Data sheet
UVLED-365-NV2	365 nm	1430 mW	1 A	120°	3.5 x 3.5 x 1.22 mm	request
UVLED-365-NV2D	365 nm	1430 mW	1 A	60°	3.5 x 3.5 x 2.73 mm	request
UVLED-385-NV2	385 nm	1400 mW	1 A	120°	3.5 x 3.5 x 1.22 mm
UVLED-385-NV2D	385 nm	1400 mW	1 A	60°	3.5 x 3.5 x 2.73 mm	request
UVLED-395-NV2	395 nm	1400 mW	1 A	120°	3.5 x 3.5 x 1.22 mm	request
UVLED-395-NV2D	395 nm	1400 mW	1 A	60°	3.5 x 3.5 x 2.73 mm	request
UVLED-405-NV2	405 nm	1400 mW	1 A	120°	3.5 x 3.5 x 1.22 mm	request
UVLED-405-NV2D	405 nm	1400 mW	1 A	60°	3.5 x 3.5 x 2.73 mm	request

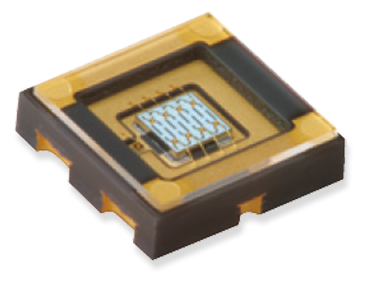

NV3 Series

Highest Output Power
Ceramic SMD package
flat glass window
Zener diode, ESD protection

Part No.	Wavelength	Output Power	Current	φ	Size
UVLED-365-NV3B	365 nm	4900 mW	3.5 A	120°	6.8 x 6.8 x 1.9 mm
UVLED-385-NV3B	385 nm	5500 mW	3.5 A	120°	6.8 x 6.8 x 1.9 mm
UVLED-405-NV3	405 nm	4640 mW	3.5 A	120°	6.8 x 6.8 x 1.9 mm

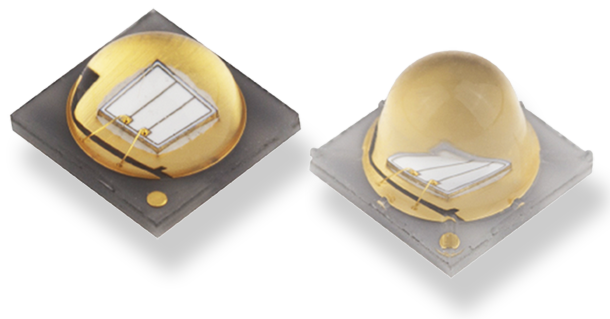

Z5 Series

Silicone resin lens
Ceramic SMD 3535 package
Low thermal resistance
Integrated ESD protection
Lead free product / RoHS compliant

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size
CUN66A1F	365 nm	420 mW	250 mA	3.6 V	120°	3.5 x 3.5 x 2.0 mm
CUN66A1B	365 nm	1000 mW	500 mA	3.6 V	120°	3.5 x 3.5 x 2.0 mm
CUN66B1B	365 nm	1000 mW	500 mA	3.6 V	45°	3.5 x 3.5 x 2.8 mm
CUN66A1G	365 nm	1850 mW	1 A	3.7 V	120°	3.5 x 3.5 x 2.0 mm
CUN66B1G	365 nm	1850 mW	1 A	3.7 V	65°	3.5 x 3.5 x 2.8 mm

CUN86A1B	385 nm	1200 mW	500 mA	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN86B1B	385 nm	1160 mW	500 mA	3.5 V	45°	3.5 x 3.5 x 2.8 mm
CUN86A1G	385 nm	2150 mW	1 A	3.6 V	120°	3.5 x 3.5 x 2.0 mm
CUN86B1G	385 nm	2050 mW	1 A	3.6 V	65°	3.5 x 3.5 x 2.8 mm

CUN96A1B	395 nm	1250 mW	500 mA	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN96B1B	395 nm	1250 mW	500 mA	3.5 V	45°	3.5 x 3.5 x 2.8 mm
CUN96A1G	395 nm	2100 mW	1 A	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN96B1G	395 nm	2050 mW	1 A	3.5 V	65°	3.5 x 3.5 x 2.8 mm

CUN06A1B	405 nm	1160 mW	500 mA	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN06B1B	405 nm	1160 mW	500 mA	3.5 V	45°	3.5 x 3.5 x 2.8 mm
CUN06A1G	405 nm	2050 mW	1 A	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN06B1G	405 nm	2050 mW	1 A	3.5 V	65°	3.5 x 3.5 x 2.8 mm

CUN26A1B	420 nm	1000 mW	500 mA	3.5 V	120°	3.5 x 3.5 x 2.0 mm
CUN26B1B	420 nm	1040 mW	500 mA	3.5 V	45°	3.5 x 3.5 x 2.8 mm

CA3535 Series

silicone resin lens
Ceramic SMD 3535 package
Low thermal resistance
Integrated ESD protection
Lead free product / RoHS compliant

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
CUN6GF1A	365 nm	1400 mW	1 A	3.7 V	115°	3.5 x 3.5 x 1.1 mm
CUN6GB1A	365 nm	1400 mW	1 A	3.7 V	63°	3.5 x 3.5 x 2.5 mm

CUN8GF1A	385 nm	1650 mW	1 A	3.6 V	115°	3.5 x 3.5 x 1.1 mm
CUN8GB1A	385 nm	1650 mW	1 A	3.6 V	63°	3.5 x 3.5 x 2.5 mm

CUN9GF1A	395 nm	1700 mW	1 A	3.5 V	115°	3.5 x 3.5 x 1.1 mm
CUN9GB1A	395 nm	1700 mW	1 A	3.5 V	63°	3.5 x 3.5 x 2.5 mm

CUN0GF1A	405 nm	1600 mW	1 A	3.5 V	115°	3.5 x 3.5 x 1.1 mm
CUN0GB1A	405 nm	1630 mW	1 A	3.6 V	63°	3.5 x 3.5 x 2.5 mm

AAP63 Series

Quartz Glass window
Aluminium SMD package
Low thermal resistance
Zener diode, ESD protection

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note	Data sheet
CUN6AF1B	365 nm	690 mW	500 mA	3.8 V	110°	6.4 x 6.4 x 1.4 mm	glass window
CUN0AF1B	405 nm	850 mW	500 mA	3.6 V	110°	6.4 x 6.4 x 1.4 mm	glass window

RLCU-440 Series

High power surface mount LED
Power chip technology
AIN ceramics submount, silver plated soldering pads
Lead free solderable, RoHs compliant, Top -40...85°C
SMD package, 3.8 x 3.8 x 0.9 mm

Part No.	Wavelength	Output Power	Current	Voltage	φ	Data sheet
RLCU-440-365	365-370 nm	40-90 mW	350 mA	4.0 V	120°
RLCU-440-380	380-385 nm	90-160 mW	350 mA	4.0 V	120°
RLCU-440-390	390-395 nm	130-260 mW	350 mA	4.0 V	120°
RLCU-440-400	400-405 nm	190-310 mW	350 mA	4.0 V	120°
RLCU-440-410	410-415 nm	typ. 250 mW	350 mA	4.0 V	120°	request
RLCU-440-415	415-420 nm	typ. 250 mW	350 mA	4.0 V	120°	request
RLCU-440-720	720 nm	30-50 mW/sr	350 mA		120°	request
RLCU-440-880	880 nm	20-30 mW/sr	350 mA		120°	request
RLCU-440-970	970 nm	typ. 9 mW/sr	350 mA		120°	request
RLCU-440-1020	1020 nm	60 mW	350 mA		120°
RLCU-440-1050	1050 nm	59 mW	350 mA		120°

VLxxx-5050 Series

High power LED
Power chip technology
UV resistant silicone mold, integrated zener diode ESD protection
Hermetic ceramic SMD package, size: 5.0 x 5.0 x 1.0 mm

Part No.	Wavelength	Output Power	Current	Voltage	φ	Size	Note
VL370-5050	370 nm	20-30 mW	350 mA	4.0-4.2 V	120°		phase out
XRL-375-SD	375 nm	48 mW	100 mA	3.6 V	120°	4.2 x 4.2 x 1.3 mm	phase out
VL400-5050	400 nm	100-110 mW	350 mA	3.5-3.8 V	120°		phase out

SMB1W Series

High power LED, power chip technology
Chip size 1 x 1 mm², mounted on copper heat sink into a hermetic ceramic SMD package
Base size: 5.0 x 5.0 mm
silicone / epoxy mold, flat or lens
Wavelength: 395 nm - 1050 nm available

Part No.	Wavelength	Output Power	Current	Voltage	φ	Note	Data sheet
SMB1W-395R	395 nm	100 mW	200 mA	< 4.5 V	126°
SMB1W-470-04	470 nm	170 mW	250 mA	< 3.8 V	36°		request
SMB1W-490R	490 nm	160 mW	250 mA	< 4.1 V	126°		request
SMB1W-525R	525 nm	55 mW	200 mA	< 3.8 V	120°		request
SMB1W-670R	670 nm	200 mW	600 mA		124°
SMB1W-680R-I	680 nm	90 mW	500 mA	< 2.7 V	124°	isolated chip	request
SMB1W-700-02	700 nm	90 mW	500 mA	< 2.7 V	22°		request
SMB1W-700-04	700 nm	90 mW	500 mA	< 2.7 V	48°
SMB1W-700-04-I	700 nm	90 mW	500 mA	< 2.7 V	48°	isolated chip	request
SMB1W-750-04	750 nm	330 mW	800 mA	< 2.5 V	42°		request
SMB1W-760-I	760 nm	330 mW	800 mA	< 2.5 V	124°	isolated chip
SMB1W-760-04-I	760 nm	330 mW	800 mA	< 2.5 V	48°	isolated chip	request
SMB1W-770R	770 nm	330 mW	800 mA	< 2.5 V	124°
SMB1W-770-04	770 nm	330 mW	800 mA		48°		request
SMB1W-780-02	780 nm	330 mW	800 mA		22°		request
SMB1W-780-04-I	780 nm	330 mW	800 mA	< 2.5 V	48°	isolated chip	request
SMB1W-850	850 nm	430 mW	1.0 A	< 2.5 V	132°
SMB1W-850D	850 nm	600 mW	1.2 A	< 2.9 V	126°
SMB1W-850D-04	850 nm	630 mW	1 A		38°		request
SMB1W-870	870 nm	430 mW	1.0 A	< 2.5 V	132°
SMB1W-870-I	870 nm	230 mW	600 mA	< 2.1 V	132°	isolated chip
SMB1W-880R-I	880 nm	320 mW	800 mA	lt; 2.2 V	132°	isolated chip	request
SMB1W-880-04-I	880 nm	320 mW	800 mA	< 2.2 V	42°	isolated chip	request
SMB1W-940-04-I	940 nm	110 mW	500 mA	< 1.65 V	50°	isolated chip	request

MOQ: 1 piece
