FIBER-COUPLED LASER DIODES

Related products: Fiber Optic Collimator Lenses Ι Drivers For Laser Diodes

395 nm - 415 nm
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data Sheet
SPL375-100-C105M 375 ±10 nm 100 mW MM 105 µm FC/PC Coaxial pdf
SPL395-200-C105M 395 ±10 nm 200 mW MM 105 µm FC/PC Coaxial request
SPL395-200-C50M 395 ±10 nm 200 mW MM 50 µm FC/PC Coaxial pdf
SPM395-200-105M-PDT-14P 395 ±10 nm 200 mW MM 105 µm FC/PC 14-pin PD, TEC request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL400-15-3-PD 400 ±5 nm 15 mW SM 3 µm FC/PC Coaxial request
SPL400-15-PM-PD 400 ±5 nm 15 mW PM 3 µm FC/APC Coaxial request
SPL400-30-3-PD 400 ±5 nm 30 mW SM 3 µm FC/PC Coaxial request
SPL400-30-PM-PD 400 ±5 nm 15 mW PM 3 µm FC/APC Coaxial request
SPL400-400-C105M 400 ±5 nm 400 mW MM 105 µm FC/PC Coaxial request
SPM400-400-105M-PDT-14P 400 ±5 nm 400 mW MM 105 µm FC/PC 14-pin PD, TEC request
SPL405-15-3 405 nm 15 mW SM 3 µm FC/PC Coaxial pdf
SPL405-15-3-PD 405 nm 15 mW SM 3 µm FC/PC Coaxial PD pdf
SPL405-15-PM 405 nm 15 mW PM 3 µm FC/APC Coaxial request
SPL405-15-PM-PD 405 nm 15 mW PM 3 µm FC/APC Coaxial PD request
SPL405-200-C105M 405 nm 200 mW MM 105 µm FC/PC Coaxial pdf
SPL405-300-C105M 405 nm 300 mW MM 105 µm FC/PC Coaxial pdf
SPL405-30-3 405 nm 30 mW SM 3 µm FC/PC Coaxial request
SPL405-30-3-PD 405 nm 30 mW SM 3 µm FC/PC Coaxial PD pdf
SPL405-30-PM 405 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL405-30-PM-PD 405 nm 30 mW PM 3 µm FC/APC Coaxial PD request
SPL405-40-3-PD 405 nm 40 mW SM 3 µm FC/PC Coaxial PD pdf
SPL405-50-3 405 nm 50 mW SM 3 µm FC/PC Coaxial pdf
SPL405-50-3-PD 405 nm 50 mW SM 3 µm FC/PC Coaxial PD pdf
SPL405-50-PM 405 nm 50 mW PM 3 µm FC/APC Coaxial pdf
SPM405-300-105M-PDT-14P 405 ±10 nm 300 mW MM 105 µm FC/PC 14-pin PD, TEC request
SPL405-450-C105M 405 nm 450 mW MM 105 µm FC/PC Coaxial pdf
SPM405-450-105M-PDT-14P 405 ±10 nm 450 mW MM 105 µm FC/PC 14-pin PD, TEC request
SPM405-50-3-PDT-14P 405 ±10 nm 50 mW SM 3 µm FC/PC 14-pin PD, TEC request
SPL410-300-C105M 410 ±5 nm 300 mW MM 105 µm FC/PC Coaxial request
SPL413-300-C105M 413 ±5 nm 300 mW MM 105 µm FC/PC Coaxial request

445 nm - 488 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPM445-3W5-105M-PDT-9P 445 ±10 nm >3 W MM 105 µm FC/PC 9-pin PD, TEC request
SPL445-15-3 450 nm 15 mW SM 3 µm FC/PC Coaxial pdf
SPL445-1W-C105M 450 nm 1 W MM 105 µm FC/PC Coaxial pdf
SPL445-30-3 450 nm 30 mW SM 3 µm FC/PC Coaxial pdf
SPL445-30-PM 450 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL445-30-3 450 nm 30 mW SM 3 µm FC/PC Coaxial request
SPL445-30-PM 450 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL445-40-3 450 nm 40 mW SM 3 µm FC/PC Coaxial pdf
SPL445-500-C105M 450 nm 500 mW MM 105 µm FC/PC Coaxial pdf
SPL445-50-105M 450 nm 50 mW MM 105 µm FC/PC Coaxial pdf
SPL445-100-105M 450 nm 100 mW MM 105 µm FC/PC Coaxial pdf
SPL445-50-3 450 nm 50 mW SM 3 µm FC/PC Coaxial pdf
SPL445-50-PM 450 nm 50 mW PM 3 µm FC/APC Coaxial pdf
SPL445-70-3 450 nm 70 mW SM 3 µm FC/PC Coaxial pdf
SPL445-800-105M 450 nm 800 mW MM 105 µm FC/PC Coaxial request
SPL445-80-105M 450 nm 80 mW MM 105 µm FC/PC Coaxial request
SPM450-800-105M-PDT-14P 450 nm 800 mW MM 105 µm FC/PC 14-pin PD, TEC + Thermistor request
SPM450-1W-105M-PD-4P 450 nm 1 W MM 105 µm FC/PC 4-pin PD pdf
SPM450-1W-105M-PDT-14P 450 ±10 nm >800 mW MM 105 µm FC/PC 14-pin PD, TEC request
SPM450-3W5-50M-P2 450 nm >3 W MM 50 µm FC/PC 2-pin pdf
SPM450-3W5-50M-PDT-9P 450 nm 3.5 W MM 50 µm FC/PC 9-pin PD, TEC + Thermistor pdf
SPM450-3W5-105M-P2 450 nm 3.5 W MM 105 µm FC/PC 2-Pin pdf
SPM450-3W5-105M-PDT-9P 450 nm 3.5 W MM 105 µm FC/PC 9-pin PD, TEC + Thermistor pdf
SPM450-3W5-200M-P2 450 nm 3.5 W MM 200 µm FC/PC 2-Pin pdf
SPM450-3W5-200M-PDT-9P 450 nm 3.5 W MM 200 µm FC/PC 9-pin PD, TEC + Thermistor pdf
SPM455-4W-200M-PDT-9P 455 ±10 nm 4 W MM 200 µm FC/PC 9-pin PD, TEC request
SPM450-10W-200M-H 450 nm 10 W MM 200 µm FC, ST, SMA HHL request
SPM450-20W-200M-H 450 nm 20 W MM 200 µm FC, ST, SMA HHL pdf
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL460-100-105M 460 nm 100 mW MM 105 µm FC/PC Coaxial request
SPL460-30-3 460 nm 30 mW SM 3 µm FC/PC Coaxial pdf
SPL460-30-PM 460 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL460-50-3 460 nm 50 mW SM 3 µm FC/PC Coaxial pdf
SPL460-50-PM 460 nm 50 mW PM 3 µm FC/APC Coaxial pdf
SPL465-2W-105M 465 nm 2 W MM 105 µm FC/PC 2-pin pdf
SPM465-15W-400M-H 465 nm 15 W MM 400 µm FC/PC HHL PD, TEC request
SPM465-2W-105M-PDT-9P 465 nm 2 W MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM465-7W-200M-H 465 nm 7 W MM 200 µm FC/PC HHL pdf
SPL473-10-3 473 ±10 nm 10 mW SM 3 µm FC/PC Coaxial request
SPL473-10-PM 473 ±10 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL473-20-3 473 ±10 nm 20 mW SM 3 µm FC/PC Coaxial request
SPL473-20-PM 473 ±10 nm 20 mW PM 3 µm FC/APC Coaxial request
SPL480-10-3 480 ±5 nm 10 mW SM 3 µm FC/PC Coaxial request
SPL480-10-PM 480 ±5 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL480-20-3 480 ±5 nm 20 mW SM 3 µm FC/PC Coaxial request
SPL480-20-PM 480 ±5 nm 20 mW PM 3 µm FC/APC Coaxial request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL488-10-3 488 nm 10 mW SM 3 µm FC, SC, SMA Coaxial pdf
SPL488-10-PM 488 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL488-20-3 488 nm 20 mW SM 3 µm FC, SC, SMA Coaxial pdf
SPL488-20-PM 488 nm 20 mW PM 3 µm FC/APC Coaxial request
SPL488-30-3 488 nm 30 mW SM 3 µm FC, SC, SMA Coaxial request
SPL488-30-PM 488 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL488-40-105M 488 nm 40 mW MM 105 µm FC, SC, SMA Coaxial request
SPL488-50-105M 488 nm 50 mW MM 105 µm FC, SC, SMA Coaxial pdf
SPL495-10-3 495 ±5 nm 10 mW SM 3 µm FC/PC Coaxial request
SPL495-10-PM 495 ±5 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL495-20-3 495 ±5 nm 20 mW SM 3 µm FC/PC Coaxial request
SPL495-20-PM 495 ±5 nm 20 mW PM 3 µm FC/APC Coaxial request
SPL495-50-105M 495 ±5 nm 50 mW MM 105 µm FC/PC Coaxial request

505 nm - 532 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL505-10-3 505 ±10 nm 10 mW SM 3 µm FC/PC Coaxial request
SPL505-10-PM 505 ±10 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL505-20-3 505 ±10 nm 20 mW SM 3 µm FC/PC Coaxial request
SPL505-20-PM 505 ±10 nm 20 mW PM 3 µm FC/APC Coaxial request
SPL505-30-105M 505 ±10 nm 30 mW MM 105 µm FC/PC Coaxial request
SPL505-50-105M 505 ±10 nm 50 mW MM 105 µm FC/PC Coaxial request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL510-10-SM 510 ±10 nm 10 mW SM 3 µm FC/PC Coaxial request
SPL510-10-PM 510 ±10 nm 10 mW PM 3 µm FC/APC Coaxial request
SPL510-20-SM 510 ±10 nm 20 mW SM 3 µm FC/PC Coaxial request
SPL510-20-PM 510 ±10 nm 20 mW PM 3 µm FC/APC Coaxial request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL520-1-3-PD 520 nm 1 mW SM 3 µm FC, SC, SMA Coaxial PD pdf
SPL520-10-3-PD 520 nm 10 mW SM 3 µm FC, SC, SMA Coaxial PD pdf
SPL520-10-PM-PD 520 nm 10 mW PM 3 µm FC/APC Coaxial PD pdf
SPL520-20-3-PD 520 nm 20 mW SM 3 µm FC, SC, SMA Coaxial PD pdf
SPL520-20-PM-PD 520 nm 20 mW PM 3 µm FC/APC Coaxial PD pdf
SPL520-25-3-PD 520 nm 25 mW SM 3 µm FC, SC, SMA Coaxial PD pdf
SPL520-30-3 520 nm 30 mW SM 3 µm FC, SC, SMA Coaxial pdf
SPL520-30-3-PD 520 nm 30 mW SM 3 µm FC, SC, SMA Coaxial PD pdf
SPL520-30-PM 520 nm 30 mW PM 3 µm FC/APC Coaxial pdf
SPL520-30-PM-PD 520 nm 30 mW PM 3 µm FC/APC Coaxial PD pdf
SPL520-40-3 520 nm 40 mW SM 3 µm FC, SC, SMA Coaxial pdf
SPL520-40-PM 520 nm 40 mW PM 3 µm FC/APC Coaxial pdf
SPL520-50-105M-PD 520 nm 50 mW MM 105 µm FC, SC, SMA Coaxial PD request
SPL520-50-3 520 nm 50 mW SM 3 µm FC, SC, SMA Coaxial pdf
SPL520-50-PM 520 nm 50 mW PM 3 µm FC/APC Coaxial pdf
SPL520-80-105M 520 nm 80 mW MM 105 µm FC, SC, SMA Coaxial pdf
SPL520-80-9 520 ±10 nm 80 mW SM 9 µm FC/PC Coaxial pdf
SPM520-80-9-PDT-8P 520 ±10 nm 80 mW SM 9 µm FC/PC 8-pin TEC request
SPL520-100-105M 520 nm 100 mW MM 105 µm FC, SC, SMA Coaxial request
SPM520-100-105M-PDT-14P 520 nm 100 mW MM 105 µm FC/PC 14-pin PD, TEC pdf
SPL520-200-105M 520 nm 200 mW MM 105 µm FC, SC, SMA Coaxial pdf
SPM520-200-105M-PDT-14P 520 nm 200 mW MM 105 µm FC/PC 14-pin PD, TEC pdf
SPL520-800-105M 520 nm 700 mW MM 105 µm FC, SC, SMA Coaxial request
SPM520-800-105M-PDT-9P 520 nm 800 mW MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM520-1W2-105M-P2 520 nm 1.2 W MM 105 µm FC, SC, SMA 2-pin pdf
SPM520-1W2-105M-PDT-9P 520 nm 1.2 W MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM525-800-105M-PDT-9P 525 ±10 nm 800 mW MM 105 µm FC/PC 9-pin PD, TEC request
SPM525-1W2-105M-PDT-9P 525 ±10 nm 1.2 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM525-2W5-200M-H 525 nm 2.5 W MM 200 µm FC/PC HHL pdf
SPM525-5W-200M-H 525 nm 5 W MM 200 µm FC/PC HHL pdf
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPM530-1W-105M-P2 530 ±10 nm 1 W MM 105 µm FC/PC 2-pin pdf
SPM530-1W-105M-PDT-9P 530 ±10 nm 1 W MM 105 µm FC/PC 9-pin PD, TEC pdf

635 nm - 690 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPM630-300-105M-PDT-9P 630 ±5 nm 300 mW MM 105 µm FC/PC 9-pin PD, TEC request
SPL633-30-4 633 ±5 nm 30 mW SM 4 µm FC/PC Coaxial request
SPL633-30-PM 633 ±5 nm 30 mW PM 4 µm FC/APC Coaxial pdf
SPL633-50-4 633 ±5 nm 50 mW SM 4 µm FC/PC Coaxial request
SPL633-50-PM 633 ±5 nm 50 mW PM 4 µm FC/APC Coaxial request
SPM633-700-105M-PDT-9P 633 ±5 nm 700 mW MM 105 µm FC/PC 9-pin PD, TEC request
RLCD-M63H-1W 635 ±10 nm 1 W MM 400 µm SMA HHL request
RLCD-M63H-2W 635 ±10 nm 2 W MM 400 µm SMA HHL request
RLCD-M63H-350 635 ±10 nm 350 mW MM 100 µm FC, ST, SMA HHL pdf
RLCD-S63-10 635 nm 10 mW SM 4 µm FC/APC Coaxial PD request
RLCD-S63-20 635 nm 20 mW SM 4 µm FC/PC Coaxial request
SPL635-1-4-PD 635 nm 1 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-2-4-PD 635 nm 2 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-100-4-PD 638 nm 100 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-100-9 638 nm 100 mW SM 9 µm FC, ST, SMA Coaxial pdf
SPL635-100-9-PD 638 nm 100 mW SM 9 µm FC, ST, SMA Coaxial PD pdf
SPL635-100-PM-PD 638 nm 100 mW PM 4 µm FC/APC Coaxial PD request
SPL635-10-4-PD 638 nm 10 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-10-9-PD 638 nm 10 mW SM 9 µm FC, ST, SMA Coaxial PD pdf
SPL635-10-PM-PD 638 nm 10 mW PM 4 µm FC/APC Coaxial PD pdf
SPL635-120-105M 638 nm 120 mW MM 105 µm FC, ST, SMA Coaxial pdf
SPL635-120-105M-PD 638 nm 120 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL635-150-105M-PD 638 nm 150 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL635-1W-105M 638 nm 1 W MM 105 µm FC, ST, SMA Coaxial pdf
SPL635-1W8-200M 638 nm 1.8 W MM 105 µm FC, ST, SMA Coaxial request
SPL635-2-4-PD 638 ±10 nm >1 mW SM 4 µm FC/PC Coaxial PD request
SPL635-300-105M 638 nm 300 mW MM 105 µm FC, ST, SMA Coaxial pdf
SPL635-30-105M-PD 638 nm 30 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL635-30-4 638 nm 30 mW SM 4 µm FC, ST, SMA Coaxial pdf
SPL635-30-4-PD 638 nm 30 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-30-PM-PD 638 nm 30 mW PM 4 µm FC/APC Coaxial PD request
SPL635-3-3-PD 638 nm 3 mW SM 3 µm FC/PC Coaxial PD request
SPL635-3-4-PD 638 nm 3 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-350-105M 638 nm 350 mW MM 105 µm FC, ST, SMA Coaxial pdf
SPL635-400-105M 638 nm 400 mW MM 105 µm FC, ST, SMA Coaxial pdf
SPL635-50-4 638 nm 50 mW SM 4 µm FC, ST, SMA Coaxial pdf
SPL635-50-4-PD 638 nm 50 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-50-9 638 nm 50 mW SM 9 µm FC, ST, SMA Coaxial pdf
SPL635-50-9-PD 638 nm 50 mW SM 9 µm FC, ST, SMA Coaxial PD pdf
SPL635-50-PM-PD 638 nm 50 mW PM 4 µm FC/APC Coaxial PD request
SPL635-5-105M-PD 638 nm 5 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL635-5-3-PD 638 nm 5 mW SM 3 µm FC/PC Coaxial PD request
SPL635-5-4-PD 638 nm 5 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-70-4 638 nm 70 mW SM 4 µm FC, ST, SMA Coaxial pdf
SPL635-80-4-PD 638 nm 80 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL635-80-9 638 nm 80 mW SM 9 µm FC, ST, SMA Coaxial pdf
SPL635-80-9-PD 638 nm 80 mW SM 9 µm FC, ST, SMA Coaxial PD pdf
SPL635-80-PM-PD 638 nm 80 mW PM 4 µm FC/APC Coaxial PD request
SPM635-1W-105M-PDT-9P 638 nm 1 W MM 105 µm FC, ST, SMA 9-pin PD, TEC + Thermistor pdf
SPM635-1W8-200M-PDT-9P 638 nm 1.8 W MM 200 µm FC, ST, SMA 9-pin PD, TEC + Thermistor pdf
SPM635-400-400M-PDT-14P 638 nm 400 mW MM 400 µm FC, ST, SMA 14-pin PD, TEC + Thermistor request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
RLCD-M65H-200 650 ±5 nm 200 mW MM 100 µm FC, SMA 9-pin request
SPM653-700-105M-PDT-9P 653 ±5 nm 700 mW MM 105 µm FC/PC 9-pin PD, TEC request
SPL650-100-4 658 nm 100 mW SM 4 µm FC, ST, SMA Coaxial pdf
SPL650-100-4-FCA 658 nm 100 mW SM 4 µm FC/APC Coaxial request
SPL650-100-9 658 nm 100 mW SM 9 µm FC, ST, SMA Coaxial request
SPL650-100-PM 658 nm 100 mW PM 4 µm FC/APC Coaxial request
SPL650-10-4-PD 658 nm 10 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL650-10-PM-PD 658 nm 10 mW PM 4 µm FC/APC Coaxial PD request
SPL650-120-105M 658 nm 120 mW MM 105 µm FC/PC Coaxial pdf
SPL650-150-105M 658 nm 150 mW MM 105 µm FC/PC Coaxial pdf
SPL650-15-4-PD 658 nm 15 mW SM 4 µm FC/PC Coaxial PD pdf
SPM650-1W-105M-P2 658 nm 1 W MM 105 µm FC/PC 2-pin pdf
SPL650-20-4-PD 658 nm 20 mW SM 4 µm FC/PC Coaxial PD pdf
SPL650-20-C4 658 nm 20 mW SM 4 µm FC/PC Coaxial request
SPL650-20-C9 658 nm 20 mW SM 9 µm FC/PC Coaxial request
SPL650-30-105M-PD 658 nm 30 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL650-30-PM 658 nm 30 mW PM 4 µm FC/APC Coaxial request
SPL650-3-4-PD 658 nm 3 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL650-50-4 658 nm 50 mW SM 4 µm FC/PC Coaxial request
SPL650-50-9 658 nm 50 mW SM 9 µm FC, ST, SMA Coaxial request
SPL650-50-PM 658 nm 50 mW PM 4 µm FC/APC Coaxial request
SPL650-5-4-PD 658 nm 5 mW SM 4 µm FC, ST, SMA Coaxial PD pdf
SPL650-80-4 658 nm 80 mW SM 4 µm FC/PC Coaxial request
SPL650-80-9 658 nm 80 mW SM 9 µm FC/PC Coaxial request
SPL650-80-PM 658 nm 80 mW PM 4 µm FC/APC Coaxial request
SPM650-1W-105M-PDT-9P 658 nm 1 W MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM650-800-105M-4P 658 nm 800 mW MM 105 µm FC/PC 4-pin request
SPM650-800-105M-PDT-9P 658 nm 800 mW MM 105 µm FC/PC 9-pin PD, TEC pdf
SPL650-3-4-PD-FCA 658 nm 3 mW SM 4 µm FC/APC Coaxial request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
G066PU214W 660 ±5 nm 1.4 W MM 430 µm ST, SMA H2 TEC request
G066PU335W 660 ±5 nm 3.5 W MM 600 µm SMA H3 TEC request
RLCD-M66H-750 660 ±10 nm 750 mW MM 100 µm FC, ST, SMA 9-pin HHL TEC pdf
RLCD-S66H-40 660 ±5 nm 40 mW SM 4 µm FC, ST, SMA HHL TEC request
RLCD-S66H-60 660 ±5 nm 60 mW SM 4 µm FC, ST, SMA HHL TEC request
RLCD-S66H-80 660 ±5 nm 80 mW SM 4 µm FC, ST, SMA HHL TEC request
SPM660-1W-105M-P2 660 ±10 nm 1 W MM 105 µm FC/PC 2-pin pdf
SPM660-10-4-PDT-8P 660 ±10 nm 10 mW SM 4 µm FC/PC 8-pin PD, TEC request
SPM660-1W-105M-PDT-14P 660 ±10 nm 1 W MM 105 µm FC/PC 14-pin PD, TEC request
SPM660-20-4-T-8P 660 ±10 nm 20 mW SM 4 µm FC/PC 8-pin TEC request
SPM660-60-4-T-8P 660 ±10 nm 60 mW SM 4 µm FC/PC 8-pin TEC request
SPM660-800-105M-PDT-14P 660 ±10 nm 800 mW MM 105 µm FC/PC 14-pin PD, TEC request
SPM660-80-4-T-8P 660 ±10 nm 80 mW SM 4 µm FC/PC 8-pin TEC request
RLCD-M66H-2W 665 ±5 nm 2 W MM 400 µm SMA HHL pdf
RLCD-M66H-3W 665 ±5 nm 3 W MM 400 µm SMA HHL pdf
RLCD-M66H-5W 665 ±5 nm 5 W MM 400 µm SMA HHL request
SPM660-3W-300M-T-10P 660 ±10 nm 3 W MM 3x 105 µm FC/PC 10-pin TEC request
SPM660-5W-400M-T-10P 660 ±10 nm 5 W MM 5x 105 µm FC/PC 10-pin TEC request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
G067PU160M 670 ±10 nm 160 mW MM 100 µm FC 4-pin request
G067PU200M 670 ±10 nm 200 mW MM 100 µm FC 4-pin request
SPL670-10-105M-PD 670 nm 10 mW MM 105 µm FC/PC Coaxial PD request
SPL670-3-4-PD 670 nm 3 mW SM 4 µm FC/PC Coaxial PD request
SPL670-3-PM-PD 670 nm 3 mW PM 4 µm FC/APC Coaxial PD request
SPL670-5-105M-PD 670 nm 5 mW MM 105 µm FC/PC Coaxial PD request
SPL670-5-4-PD 670 nm 5 mW SM 4 µm FC/PC Coaxial PD pdf
SPL670-5-PM-PD 670 nm 5 mW PM 4 µm FC/APC Coaxial PD request
SPL670-50-SM 670 nm 50 mW SM 4 µm FC/PC Coaxial pdf
SPL670-50-PM 670 nm 50 mW PM 4 µm FC/APC Coaxial pdf
SPM670-50-4-T8P 670 nm 50 mW SM 4 µm FC/PC 8-pin HHL pdf
SPM670-50-PM-T8P 670 nm 50 mW PM 4 µm FC/APC 8-pin HHL pdf
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPM680-800-105M-4P 680 nm >750 mW MM 105 µm FC/PC 4-pin request
SPM680-800-105M-PDT-9P 680 nm >750 mW MM 105 µm FC/PC 9-pin PD, TEC request
SPL685-10-4-PD 685 ±15 nm 10 mW SM 4 µm FC, ST, SMA Coaxial PD request
SPL685-10-PM-PD 685 nm 10 mW PM 4 µm FC/APC Coaxial PD request
SPL685-15-4-PD 685 ±15 nm 15 mW SM 4 µm FC, ST, SMA Coaxial PD request
SPL685-15-PM-PD 685 nm 15 mW PM 4 µm FC/APC Coaxial PD request
SPL685-20-4-PD 685 nm 20 mW SM 4 µm FC/PC Coaxial PD pdf
SPL685-20-PM-PD 685 nm 20 mW PM 4 µm FC/APC Coaxial PD request
SPL685-30-105M-PD 685 nm 30 mW MM 105 µm FC/PC Coaxial PD request
SPM690-800-105M-PDT-9P 690 ±10 nm >750 mW MM 105 µm FC/PC 9-pin PD, TEC request

705 nm - 880 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL705-10-SM-PD 705 ±10 nm 10 mW SM 5 µm FC/PC Coaxial PD request
SPL705-10-PM-PD 705 ±10 nm 10 mW PM 5 µm FC/APC Coaxial PD request
SPL705-15-SM-PD 705 ±10 nm 15 mW SM 5 µm FC/PC Coaxial PD request
SPL705-15-PM-PD 705 ±10 nm 15 mW PM 5 µm FC/APC Coaxial PD request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL730-10-SM-PD 730 ±10 nm 10 mW SM 5 µm FC/PC Coaxial PD request
SPL730-10-PM-PD 730 ±10 nm 10 mW PM 5 µm FC/APC Coaxial PD request
SPL730-15-SM-PD 705 ±10 nm 15 mW SM 5 µm FC/PC Coaxial PD request
SPL730-15-PM-PD 705 ±10 nm 15 mW PM 5 µm FC/APC Coaxial PD request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
RLT780M-1.5WFC 785 ±5 nm 1 W MM 100 µm FC/PC 14-pin TEC request
RLT780M-1WFC 785 ±5 nm 1 W MM 100 µm FC/PC 14-pin TEC pdf
SPL785-30-5-PD 785 nm 30 mW SM 5 µm FC/PC Coaxial PD request
SPL785-30-PM-PD 785 nm 30 mW PM 5 µm FC/APC Coaxial PD pdf
SPL785-40-5-PD 785 nm 40 mW SM 5 µm FC/PC Coaxial PD request
SPL785-40-PM-PD 785 nm 40 mW PM 5 µm FC/APC Coaxial PD request
SPL785-50-105M-PD 785 nm 50 mW MM 105 µm FC/PC Coaxial PD pdf
SPL785-50-5-PD 785 nm 50 mW SM 5 µm FC/PC Coaxial PD pdf
SPL785-50-5-PD-FCA 785 nm 50 mW SM 5 µm FC/APC Coaxial PD request
SPL785-50-PM-PD 785 nm 50 mW PM 5 µm FC/APC Coaxial PD request
SPL785-5-5-PD 785 nm 5 mW SM 5 µm FC/PC Coaxial PD pdf
SPM785-2W-105M-PDT-14P 785 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC request
SPM785-3W-105M-2P 785 nm 3 W MM 105 µm FC/PC 2-pin request
SPM785-3W-105M-PDT-9P 785 nm 3 W MM 105 µm FC/PC 9-pin PD, TEC pdf
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
G081PU11500M 808 ±5 nm 1.5 W MM 100 µm FC, ST, SMA H1 TEC pdf manual
G081PU1600M 808 ±5 nm 600 mW MM 50 µm FC, ST, SMA H1 TEC pdf manual
G081PU1750M 808 ±5 nm 750 mW MM 100 µm FC, ST, SMA H1 TEC pdf manual
G081PU210W 808 ±5 nm 10 W MM 400 µm FC, ST, SMA H2 TEC pdf manual
G081PU25W 808 ±5 nm 5 W MM 400 µm FC, ST, SMA H2 TEC pdf manual
G081PU312W 808 ±5 nm 12 W MM 700 µm FC, ST, SMA H3 TEC pdf
G081PU314W 808 ±5 nm 14 W MM 700 µm FC, ST, SMA H3 TEC pdf
G081PU325W 808 ±5 nm 25 W MM 700 µm FC, ST, SMA H3 TEC pdf manual
RLCD-M81-40 808 ±5 nm 40 mW MM 62.5 µm FC, ST, SMA Coaxial request
RLCD-M81-60 808 ±5 nm 60 mW MM 62.5 µm FC, ST, SMA Coaxial request
RLCO-808-2000-F 808 ±3 nm 2 W MM 100 µm SMA HHL request
RLT808M-1.5WFC 808 ±5 nm 1.5 W MM 100 µm FC/PC 14-pin TEC pdf
RLT808M-10WFC 808 ±5 nm 10 W MM 400 µm SMA 14-pin TEC request
RLT808M-3WFC 808 ±5 nm 3 W MM 100 µm FC/PC 14-pin TEC pdf
RLT808M-8WFC 808 ±5 nm 8 W MM 100 µm SMA 14-pin TEC pdf
SPL808-150-65M-PD 808 nm 150 mW MM 62.5 µm FC/PC Coaxial PD pdf
SPL808-200-105M-PD 808 nm 200 mW MM 105 µm FC/PC Coaxial PD pdf
SPL808-20-5-PD 808 nm 20 mW SM 5 µm FC/PC Coaxial PD request
SPL808-20-PM-PD 808 nm 20 mW PM 5 µm FC/APC Coaxial PD pdf
SPL808-30-5-PD 808 nm 30 mW SM 5 µm FC/PC Coaxial PD request
SPL808-30-PM-PD 808 nm 30 mW PM 5 µm FC/APC Coaxial PD pdf
SPL808-40-5-PD 808 nm 40 mW SM 5 µm FC/PC Coaxial PD request
SPL808-40-5-PD-FCA 808 nm 40 mW SM 5 µm FC/APC Coaxial PD request
SPL808-50-5-PD 808 ±5 nm 50 mW SM 5 µm FC Coaxial PD request
SPM808-2W-105M-PDT-14P 808 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC pdf
SPM808-2W5-105M-2P 808 nm 2.5 W MM 105 µm FC/PC 2-pin request
SPM808-4W-105M-2P 808 nm 4 W MM 105 µm FC, ST, SMA 2-pin request
SPM808-4W-105M-PDT-9P 808 nm 4 W MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM808-5W-105M-2P 808 nm 5 W MM 105 µm FC, ST, SMA 2-pin request
SPM808-8W-105M-2P 808 nm 8 W MM 105 µm FC, ST, SMA 2-pin pdf
SPM808-8W-105M-PDT-9P 808 nm 8 W MM 105 µm FC, ST, SMA 9-pin PD, TEC request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL820-30-SM-PD 820 ±10 nm 30 mW SM 5 µm FC/PC Coaxial PD request
SPL820-30-PM-PD 820 ±10 nm 30 mW PM 5 µm FC/APC Coaxial PD request
SPL820-50-SM-PD 820 ±10 nm 50 mW SM 5 µm FC/PC Coaxial PD request
SPL820-50-PM-PD 820 ±10 nm 50 mW PM 5 µm FC/APC Coaxial PD request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL830-100-5-PD 830 nm 100 mW SM 5 µm FC/PC Coaxial PD request
SPL830-100-PM-PD 830 nm 100 mW PM 5 µm FC/APC Coaxial PD request
SPL830-150-105M-PD 830 nm 150 mW MM 105 µm FC/PC Coaxial PD pdf
SPL830-200-105M-PD 830 nm 200 mW MM 105 µm FC/PC Coaxial PD pdf
SPL830-30-5-PD 830 nm 30 mW SM 5 µm FC/PC Coaxial PD request
SPL830-30-PM-PD 830 nm 30 mW PM 5 µm FC/APC Coaxial PD pdf
SPL830-50-5-PD 830 nm 50 mW SM 5 µm FC/PC Coaxial PD request
SPL830-50-PM-PD 830 nm 50 mW PM 5 µm FC/APC Coaxial PD request
SPL830-5-5-PD 830 nm 5 mW SM 5 µm FC/PC Coaxial PD pdf
SPL830-80-5-PD 830 nm 80 mW SM 5 µm FC/PC Coaxial PD request
SPL830-80-PM-PD 830 nm 80 mW PM 5 µm FC/APC Coaxial PD request
SPM830-1W-50M-2P 830 nm 1 W MM 50 µm FC/PC 2-pin pdf
SPM830-2W-105M-PDT-14P 830 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC pdf
SPM830-3W-105M-2P 830 nm 3 W MM 105 µm FC/PC 2-pin request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL850-10-5-PD 850 ±10 nm 10 mW SM 5 µm FC, ST, SMA Coaxial PD pdf
SPL850-120-105M-PD 850 nm 120 mW MM 105 µm FC/PC Coaxial PD pdf
SPL850-200-105M-PD 850 nm 200 mW MM 105 µm FC/PC Coaxial PD pdf
SPL850-30-5-PD 850 ±10 nm 30 mW SM 5 µm FC, ST, SMA Coaxial PD pdf
SPL850-30-PM-PD 850 nm 30 mW PM 5 µm FC/APC Coaxial PD request
SPL850-50-105M-PD 850 ±10 nm 50 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL850-50-5-PD 850 ±10 nm 50 mW SM 5 µm FC, ST, SMA Coaxial PD pdf
SPL850-50-PM-PD 850 nm 50 mW PM 5 µm FC/APC Coaxial PD request
SPL850-70-5-PD 850 nm 50 mW SM 5 µm FC/PC Coaxial PD pdf
SPL850-70-PM-PD 850 nm 70 mW PM 5 µm FC/APC Coaxial PD request
SPM860-2W-105M-PD-4P 860 nm 2 W MM 105 µm FC/PC 4-pin PD request
SPM860-2W-200M-PDT-14P 860 nm 2 W MM 200 µm FC/PC 14-pin PD, TEC request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL880-2-105M-PD 880 nm 2 mW MM 105 µm FC/PC Coaxial PD request
SPL880-2-5-PD 880 nm 2 mW SM 5 µm FC/PC Coaxial PD request
SPL880-2-PM-PD 880 nm 2 mW PM 5 µm FC/APC Coaxial PD request
SPM880-2W-105M-PDT-14P 880 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC request
SPM880-3W-105M-2P 880 nm 3 W MM 105 µm FC/PC 2-pin request

900 nm - 980 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL905-100-105-PD 905 ±10 nm 100 mW MM 105 µm FC/PC Coaxial PD request
SPL905-30-5-PD 905 ±10 nm 30 mW SM 5 µm FC/PC Coaxial PD pdf
SPL905-30-PM-PD 905 ±10 nm 30 mW PM 5 µm FC/APC Coaxial PD pdf
SPL905-50-105-PD 905 ±10 nm 50 mW MM 105 µm FC/PC Coaxial PD pdf
SPL905-50-4-PD 905 ±10 nm 50 mW SM 5 µm FC/PC Coaxial PD request
SPL905-50-PM-PD 905 ±10 nm 50 mW PM 5 µm FC/APC Coaxial PD pdf
SPL905-70-4-PD 905 ±10 nm 70 mW SM 5 µm FC/PC Coaxial PD request
RLT915M-1.5WFC 915 ±5 nm 1.5 W MM 100 µm FC/APC 14-pin PD, TEC pdf
SPM915-10W-105M-2P 915 ±10 nm 10 W MM 105 µm FC/PC 2-pin pdf
SPM915-10W-105M-PDT-9P 915 ±10 nm 10 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM915-10W-105M-PDTA-15P 915 ±10 nm 10 W MM 105 µm FC/PC 15-pin PD, TEC request
SPM915-20W-105M-H2P 915 ±10 nm 20 W MM 105 µm FC/PC HHL request
SPM915-2W-105M-PDT-14P 915 ±10 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC pdf
SPM915-30W-105M-H2P 915 ±10 nm 30 W MM 105 µm FC/PC HHL request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL940-100-105M-PD 940 nm 100 mW MM 105 µm FC/PC Coaxial PD request
SPL940-100-5-PD 940 nm 100 mW SM 5 µm FC/PC Coaxial PD request
SPL940-100-9-PD 940 nm 100 mW SM 9 µm FC/PC Coaxial PD request
SPL940-150-105M-PD 940 nm 150 mW MM 105 µm FC/PC Coaxial PD request
SPL940-200-105M-PD 940 nm 200 mW MM 105 µm FC/PC Coaxial PD request
SPL940-30-5-PD 940 nm 30 mW SM 5 µm FC/PC Coaxial PD request
SPL940-30-9-PD 940 nm 30 mW SM 9 µm FC/PC Coaxial PD request
SPL940-30-PM-PD 940 nm 30 mW PM 5 µm FC/APC Coaxial PD pdf
SPL940-50-5-PD 940 nm 50 mW SM 5 µm FC/PC Coaxial PD request
SPL940-50-9-PD 940 nm 50 mW SM 9 µm FC/PC Coaxial PD request
SPL940-50-PM-PD 940 nm 50 mW PM 5 µm FC/APC Coaxial PD pdf
SPL940-80-5-PD 940 nm 80 mW SM 5 µm FC/PC Coaxial PD request
SPL940-80-PM-PD 940 nm 80 mW PM 5 µm FC/APC Coaxial PD request
SPM940-10W-105M-2P 940 nm 10 W MM 105 µm FC/PC 2-pin pdf
SPM940-10W-105M-PDT-9P 940 nm 10 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM940-10W-105M-PDTA-15P 940 nm 10 W MM 105 µm FC/PC 15-pin PD, TEC request
SPM940-20W-105M-H2P 940 nm 20 W MM 105 µm FC/PC HHL request
SPM940-2W-105M-PDT-14P 940 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC request
SPM940-30W-105M-H2P 940 nm 30 W MM 105 µm FC/PC HHL request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
RLT975M-10WFC 975 ±5 nm 10 W MM 200 µm SMA 9-pin HHL TEC request
RLT975M-3WFC 975 ±5 nm 3 W MM 100 µm FC/PC 9-pin HHL TEC pdf
SPL980-100-105M-PD 976 ±15 nm 100 mW MM 105 µm FC, ST, SMA Coaxial PD pdf
SPL980-10-6-PD 976 ±15 nm 10 mW SM 6 µm FC/PC Coaxial PD pdf
SPL980-10-9-PD 976 ±15 nm 10 mW SM 9 µm FC/PC Coaxial PD pdf
SPL980-10-C9-PD 976 ±15 nm 10 mW SM 9 µm FC/PC Coaxial PD, no heat sink pdf
SPL980-15-9-PD 976 ±15 nm 15 mW SM 9 µm FC/PC Coaxial PD pdf
SPL980-20-9-PD 976 ±15 nm 20 mW SM 9 µm FC/PC Coaxial PD pdf
SPL980-150-105M-PD 976 nm 150 mW MM 105 µm FC/PC Coaxial PD pdf
SPM980-10W-105M-2P 976 ±10 nm 10 W MM 105 µm FC/PC 2-pin request
SPM980-10W-105M-PDT-9P 976 nm 10 W MM 105 µm FC/PC 9-pin PD, TEC pdf
SPM980-10W-105M-PDTA-15P 976 ±10 nm 10 W MM 105 µm FC/PC 15-pin PD, TEC request
SPM980-10W-200M-PDT-9P 976 nm 10 W MM 200 µm FC/PC 9-pin PD, TEC pdf
SPM980-20W-105M-H2P 976 ±10 nm 20 W MM 105 µm FC/PC HHL request
SPM980-2W-105M-PDT-14P 976 nm 2 W MM 105 µm FC/PC 14-pin PD, TEC pdf
SPM980-30W-105M-H2P 976 ±10 nm 30 W MM 105 µm FC/PC HHL request
SPM980-30W-105M-T-H 976 ±10 nm 30 W MM 105 µm FC/PC HHL TEC pdf
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
G098PU11300M 980 ±5 nm 1.3 W MM 100 µm FC, ST, SMA H1 TEC request
G098PU1600M 980 ±5 nm 0.6 W MM 50 µm FC, ST, SMA H1 TEC pdf manual
G098PU1750M 980 ±5 nm 0.75 W MM 100 µm FC, ST, SMA H1 TEC pdf manual
G098PU209W 980 ±5 nm 9 W MM 400 µm FC, ST, SMA H2 TEC request
G098PU210W 980 ±5 nm 10 W MM 400 µm FC, ST, SMA H2 TEC request
G098PU25W 980 ±5 nm 5 W MM 400 µm FC, ST, SMA H2 TEC pdf manual
G098PU312W 980 ±5 nm 12 W MM 700 µm FC, ST, SMA H3 TEC pdf manual
G098PU322W 980 ±5 nm 22 W MM 700 µm FC, ST, SMA H3 TEC pdf manual
RLCD-A98H-3W 980 nm 3 W MM 200 µm SMA 16-pin 650 nm aiming beam request
RLCO-980-0500-F 980 ±10 nm 0.5 W MM 105 µm SMA HHL request

1064 nm - 1490 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1064-100-105M-PD 1064 ±15 nm 100 mW MM 105 µm FC/PC Coaxial PD request
SPL1064-10-6-PD 1064 nm 10 mW SM 6 µm FC/PC Coaxial PD pdf
SPL1064-10-9-PD 1064 nm 10 mW SM 9 µm FC/PC Coaxial PD pdf
SPL1064-10-PM-PD 1064 nm 10 mW PM 6 µm FC/APC Coaxial PD pdf
SPL1064-15-6-PD 1064 nm 15 mW SM 6 µm FC/PC Coaxial PD pdf
SPL1064-20-PM-PD 1064 nm 20 mW PM 6 µm FC/APC Coaxial PD pdf
SPL1064-30-105M-PD 1064 ±15 nm 30 mW MM 105 µm FC/PC Coaxial PD request
SPL1064-30-6-PD 1064 nm 30 mW SM 6 µm FC/PC Coaxial PD pdf
SPL1064-30-PM-PD 1064 nm 30 mW PM 6 µm FC/APC Coaxial PD pdf
SPL1064-50-6-PD 1064 nm 50 mW SM 6 µm FC/PC Coaxial PD request
SPL1064-50-9-PD 1064 nm 50 mW SM 9 µm FC/PC Coaxial PD request
SPM1064-1W-105M-PDT-14P 1064 ±20 nm 1 W MM 105 µm FC/PC 14-pin PD, TEC request
SPM1064-25W-105M-H2P 1064 ±20 nm >24 W MM 105 µm FC/PC HHL pdf
SPM1064-8W-105M-2P 1064 ±20 nm >7 W MM 105 µm FC/PC 2-pin request
SPM1064-8W-105M-PDT-9P 1064 ±20 nm >7 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1064-8W-105M-PDTA-15P 1064 ±20 nm >7 W MM 105 µm FC/PC 15-pin PD, TEC request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1270-10-9-PDI 1270 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1270-10-PM-PDI 1270 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1270-2-C9-PDI 1270 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1270-2-PM-PDI 1270 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1270-5-9-PDI 1270 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1270-5-PM-PDI 1270 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1290-10-9-PDI 1290 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1290-10-PM-PDI 1290 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1290-2-9-PDI 1290 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1290-2-C9-PDI 1290 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1290-2-PM-PDI 1290 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1290-5-9-PDI 1290 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1290-5-PM-PDI 1290 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
FU-17SLD-F3M1 1310 ±20 nm 0.5 mW SM FC Coaxial pdf
G131PU001S 1310 ±30 nm 1 mW SM 9 µm FC 14-pin TEC, tr/ts = 0.5 ns pdf
LFO-14-d 1310 ±20 nm 1 mW SM 9/125 µm FC/APC Coaxial FP, incl. driver (3 VDC) request
LFO-14-ip 1310 ±20 nm 1 mW SM 9/125 µm FC/APC Coaxial FP pdf
SPL1310-10-9-PD 1310 ±20 nm 10 mW SM 9 µm FC, ST, SMA Coaxial DFB, 1.25 Gb/s, PD request
SPL1310-10-9-PDI 1310 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1310-10-PM-PD 1310 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD pdf
SPL1310-10-PM-PDI 1310 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1310-15-9-PD 1310 nm 15 mW SM 9 µm FC/PC Coaxial DFB, PD pdf
SPL1310-15-PM-PD 1310 nm 15 mW PM 9 µm FC/APC Coaxial DFB, PD request
SPL1310-15-PM-PDI 1310 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1310-2-C9-PDI 1310 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1310-2-PM-PDI 1310 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1310-3-C9-PD 1310 ±10 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD request
SPL1310-5-9-PD 1310 ±20 nm 5 mW SM 9 µm FC, ST, SMA Coaxial DFB, 1.25 Gb/s, PD pdf
SPL1310-5-9-PDI 1310 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1310-5-PM-PDI 1310 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1310FP-1-C9-PD 1310 nm 1 mW SM 9 µm FC/PC Coaxial FP, PD request
SPL1310FP-2-C9-PD 1310 nm 2 mW SM 9 µm FC/PC Coaxial FP, PD pdf
SPM1310-1W2-105M-2P 1310 nm 1.2 W MM 105 µm FC/PC 2-Pin pdf
SPM1310-1W-105M-PDT-14P 1310 nm 1 W MM 105 µm FC/PC 14-Pin TEC, PD request
SPL1330-10-9-PDI 1330 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1330-10-PM-PDI 1330 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1330-2-C9-PDI 1330 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1330-2-PM-PDI 1330 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1330-5-9-PDI 1330 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1330-5-PM-PDI 1330 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1350-10-9-PDI 1350 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1350-10-9-PDI-SC 1350 nm 10 mW SM 9 µm SC/PC Coaxial DFB, PD, isolator request
SPL1350-10-PM-PDI 1350 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1350-2-C9-PDI 1350 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1350-2-PM-PDI 1350 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1350-5-9-PDI 1350 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1350-5-PM-PDI 1350 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPM1350-10-9-PDTI-14P 1350 nm 10 mW SM 9 µm FC/PC 14-pin DFB, PD, TEC, isolator request
SPM1350-10-9-PDTI-14P-SC 1350 nm 10 mW SM 9 µm SC/PC 14-pin DFB, PD, TEC, isolator request
SPM1350-10-9-PDTI-8P 1350 nm 10 mW SM 9 µm FC/PC 9-pin DFB, PD, TEC, isolator request
SPM1350-10-9-PDTI-8P-SC 1350 nm 10 mW SM 9 µm SC/PC 9-pin DFB, PD, TEC, isolator request
SPL1370-10-9-PDI 1370 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1370-10-PM-PDI 1370 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1370-2-C9-PDI 1370 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1370-2-PM-PDI 1370 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1370-5-9-PDI 1370 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1370-5-PM-PDI 1370 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1390-10-9-PDI 1390 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1390-10-PM-PDI 1390 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1390-2-C9-PDI 1390 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1390-2-PM-PDI 1390 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1390-5-9-PDI 1390 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1390-5-PM-PDI 1390 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
FU-17SLD-F3M1 1310 ±Â±20 nm 0.5 mW FC-receptacle request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1410-10-9-PDI 1410 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1410-10-PM-PDI 1410 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1410-2-C9-PDI 1410 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1410-2-PM-PDI 1410 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1410-5-9-PDI 1410 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1410-5-PM-PDI 1410 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator pdf
SPL1430-10-9-PDI 1430 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1430-10-PM-PDI 1430 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1430-2-C9-PDI 1430 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1430-2-PM-PDI 1430 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1430-5-9-PDI 1430 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1430-5-PM-PDI 1430 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
G145PU0400M 1450 ±30 nm 400 mW MM 100 µm SMA 4-pin request
G145PU23W 1450 ±30 nm 3 W MM 400 µm FC, ST, SMA H2 TEC pdf
G145PU38W 1450 ±30 nm 8 W MM 600 µm FC, ST, SMA H3 TEC pdf
SPL1450-10-9-PDI 1450 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1450-10-PM-PDI 1450 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1450-2-C9-PDI 1450 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1450-2-PM-PDI 1450 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1450-5-9-PDI 1450 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1450-5-PM-PDI 1450 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPM1450-12W-400M-T-H 1450 ±40 nm >11 W MM <400 µm FC/PC HHL TEC pdf
SPM1450-15W-400M-T-H 1450 ±40 nm 15 W MM <400 µm FC/PC HHL TEC request
SPM1450-2W-105M-PDT-9P 1450 ±40 nm 2 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1450-7W-300M-T-H 1450 ±40 nm >6 W MM <300 µm FC/PC HHL TEC request
SPL1470-10-9-PDI 1470 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1470-10-PM-PDI 1470 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1470-2-C9-PDI 1470 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1470-2-PM-PDI 1470 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1470-5-9-PDI 1470 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1470-5-PM-PDI 1470 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPM1470-12W-400M-T-H 1470 ±30 nm >11 W MM <400 µm FC/PC HHL TEC request
SPM1470-15W-400M-T-H 1470 ±30 nm 15 W MM <400 µm FC/PC HHL TEC request
SPM1470-2W-105M-PDT-9P 1470 nm 2 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1470-2W-105M-PDTA-15P 1470 nm >2 W MM 105 µm FC/PC 15-pin PD, TEC request
SPM1470-2W5-105M-2P 1470 nm 2 W MM 105 µm FC/PC 2-pin request
SPM1470-2W5-105M-PDT-9P 1470 ±30 nm >2 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1470-2W5-105M-PDTA-15P 1470 nm 2.5 W MM 105 µm FC/PC 15-pin PD, TEC pdf
SPM1470-3W-105M-2P 1470 nm 3 W MM 105 µm FC/PC 2-pin request
SPM1470-3W-105M-PDT-9P 1470 nm 3 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1470-7W-300M-T-H 1470 ±30 nm >6 W MM <300 µm FC/PC HHL TEC request
SPL1490-10-9-PDI 1490 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1490-10-PM-PDI 1490 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1490-2-C9-PDI 1490 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1490-2-PM-PDI 1490 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1490-5-9-PDI 1490 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1490-5-PM-PDI 1490 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request

1500 nm - 1990 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1510-10-9-PDI 1510 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1510-10-PM-PDI 1510 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1510-2-C9-PDI 1510 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1510-2-PM-PDI 1510 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator pdf
SPL1510-5-9-PDI 1510 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1510-5-PM-PDI 1510 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1530-10-9-PDI 1530 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1530-10-PM-PDI 1530 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1530-2-C9-PDI 1530 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1530-2-PM-PDI 1530 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1530-5-9-PDI 1530 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1530-5-9-PDI-FCA 1530 nm 5 mW SM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1530-5-PM-PDI 1530 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPM1530-10W-400M-T-H 1530 ±30 nm 10 W MM <400 µm FC/PC HHL TEC request
SPM1530-1W5-105M-PDT-9P 1530 ±40 nm 1.5 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1530-5W-300M-T-H 1530 ±40 nm >4.5 W MM <300 µm FC/PC HHL TEC request
SPM1530-8W-400M-T-H 1530 ±30 nm 8 W MM <400 µm FC/PC HHL TEC request
SPL1570-10-9-PDI 1570 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1570-10-PM-PDI 1570 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1550FP-1-C9-PD 1550 nm 1 mW SM 9 µm FC/PC Coaxial FP, PD request
SPL1550FP-2-C9-PD 1550 nm 2 mW SM 9 µm FC/PC Coaxial FP, PD pdf
SPL1550FP-2-C9-PDI 1550 nm 2 mW SM 9 µm FC/PC Coaxial FP, optical isolator pdf
SPL1550-2-C9-PDI 1550 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1550-2-PM-PDI 1550 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1550-3-C9-PD 1550 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD request
SPL1550-3-C9-PD-FCA 1550 nm 2 mW SM 9 µm FC/APC Coaxial DFB, PD request
SPL1550-5-9-PD 1550 ±10 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD pdf
SPL1550-5-9-PDI 1550 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1550-5-PM-PDI 1550 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1550-8-9-PD 1550 nm 8 mW SM 9 µm FC, ST, SMA Coaxial DFB, 2.0 Gb/s, PD request
SPL1550-10-9-PD 1550 nm 10 mW SM 9 µm FC, ST, SMA Coaxial DFB, 2.0 Gb/s, PD pdf
SPL1550-10-PM-PDI 1550 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPM1550-10W-400M-T-H 1550 ±30 nm 10 W MM <400 µm FC/PC HHL TEC request
SPM1550-1W5-105M-2P 1550 nm 1.5 W MM 105 µm FC/PC 2-pin request
SPM1550-1W5-105M-PDT-9P 1550 nm 1.5 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1550-2W5-105M-2P 1550 nm 2.5 W MM 105 µm FC/PC 2-pin request
SPM1550-2W5-105M-PDT-9P 1550 nm 2.5 W MM 105 µm FC/PC 9-pin PD, TEC request
SPM1550-2W5-105M-PDTA-15P 1550 nm 2.5 W MM 105 µm FC/PC 15-pin PD, TEC request
SPM1550-5W-300M-T-H 1550 ±30 nm >4.5 W MM <300 µm FC/PC HHL TEC request
SPM1550-8W-400M-T-H 1550 ±30 nm 8 W MM <400 µm FC/PC HHL TEC request
SPL1550-10-9-PDI 1550 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, Isolator request
Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
SPL1570-2-C9-PDI 1570 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1570-2-PM-PDI 1570 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1570-5-9-PDI 1570 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1570-5-9-PDI-FCA 1570 nm 5 mW SM 9 µm FC/APC Coaxial DFB, PD, isolator pdf
SPL1570-5-PM-PDI 1570 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1570-10-9-PDI 1570 nm 10 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1570-10-PM-PDI 1570 nm 10 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1590-2-C9-PDI 1590 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1590-2-PM-PDI 1590 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1590-5-9-PDI 1590 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1590-5-PM-PDI 1590 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1590-8-9-PDI 1590 nm 8 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator pdf
SPL1610-2-C9-PDI 1610 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1610-2-PM-PDI 1610 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1610-5-9-PDI 1610 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1610-5-PM-PDI 1610 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1610-8-9-PDI 1610 nm 8 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1625-2-9-PDI 1625 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1625-2-C9-PDI 1625 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1625-2-PM-PDI 1625 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1625-5-9-PDI 1625 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1625-5-PM-PDI 1625 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1625-8-9-PDI 1625 nm 8 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1650-2-9-PDI 1650 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1650-2-C9-PDI 1650 nm 2 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1650-2-PM-PDI 1650 nm 2 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1650-5-9-PDI 1650 nm 5 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPL1650-5-PM-PDI 1650 nm 5 mW PM 9 µm FC/APC Coaxial DFB, PD, isolator request
SPL1650-8-9-PDI 1650 nm 8 mW SM 9 µm FC/PC Coaxial DFB, PD, isolator request
SPM1650-5-9-PDTI-14P 1650 ±10 nm 5 mW SM 9 µm FC/PC 14-pin DFB, PD, TEC, Isolator request
SPM1650-5-9-PDTI-14P-S3 1650 ±3 nm 5 mW SM 9 µm FC/PC 14-pin DFB, PD, TEC, Isolator request

2000 nm - 2100 nm

Part No. Wavelength Output Power Fiber Core Size Connector Package Note Data sheet
RLEP202-D 2020 nm 3.5 mW SM 14-pin discrete mode, linewidth <2 MHz request
RLEP202-F 2020 nm 10 mW SM 14-pin DIL Fabry Perot, TEC & Thermistor request

Dual-Wavelength Laser Diodes with SMA connector

Dual-wavelength laser diodes with SMA connector for 200 µm or 400 µm MM fiber (fiber available optionally), output powers up to 7 W, and a 650 nm 2mW aiming beam. Standard configurations at 808 nm and 980 nm are available for applications like dentistry, surgery, aesthetics and physiotherapy.

Part No. Wavelength Output Power Mode Fiber Connector Type Package Note Data sheet

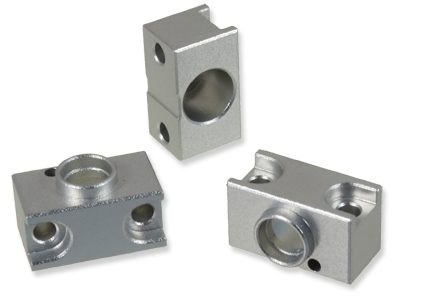

Heat Sink for SPL Series Laser Diodes

Compact size heat sink made from CNC cut Aluminium to greatly improve the heat dissipation capability of the coaxial type SPL laser diodes

Part No. Dimension Aperture Type Material Note Data sheet
SPL-COAX-B8 14 x 7 x 8 mm 6.2 mm coaxial Aluminium only suitable for SPL coaxial series pdf
MOQ: 1 piece

Roithner Lasertechnik GmbH, Wiedner Hauptstraße 76, A-1040 Vienna, Austria, Tel.: +43 1 586 52 43 - 0, Fax +43 1 586 52 43 - 44
